1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

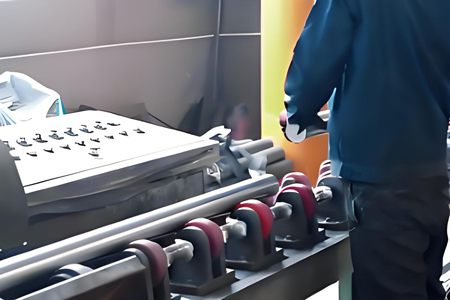

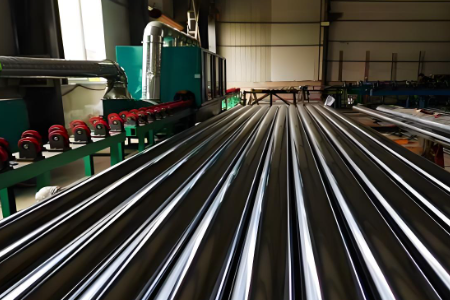

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

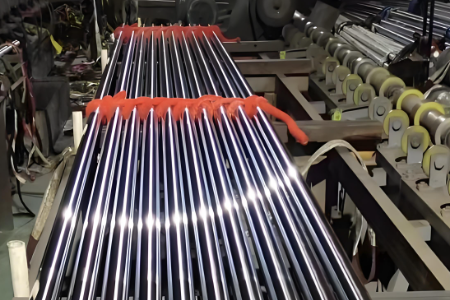

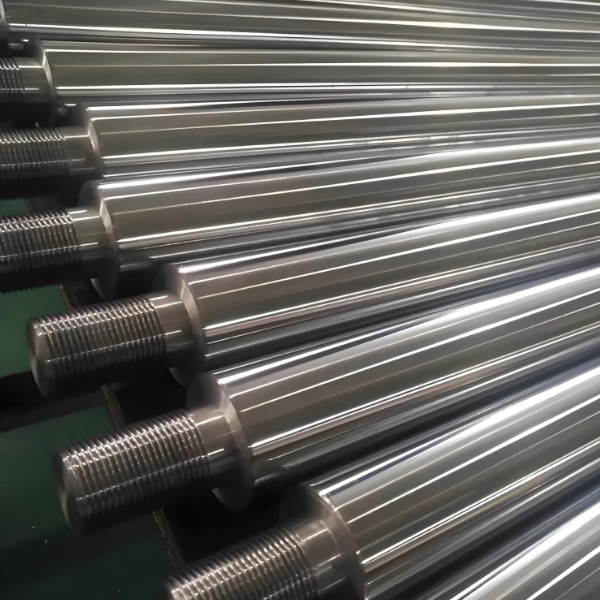

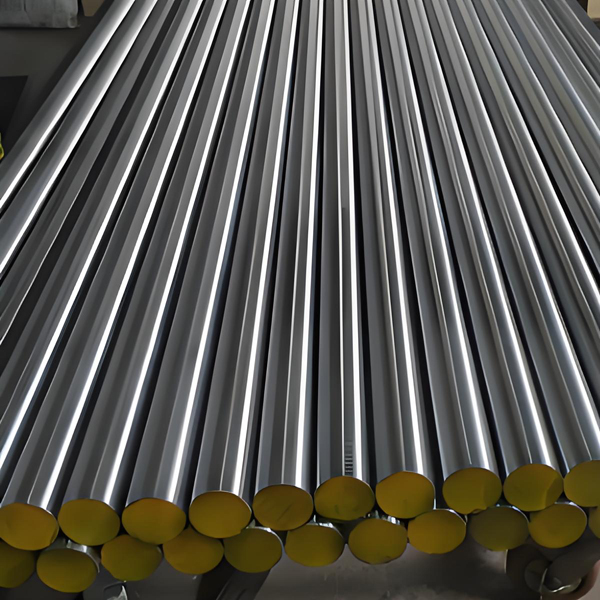

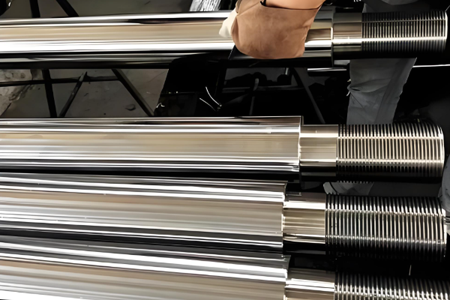

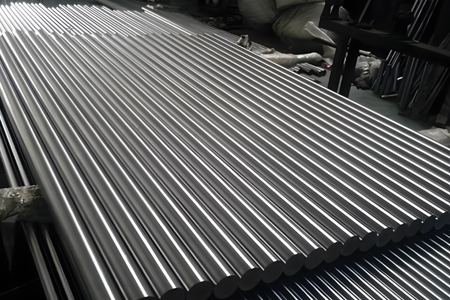

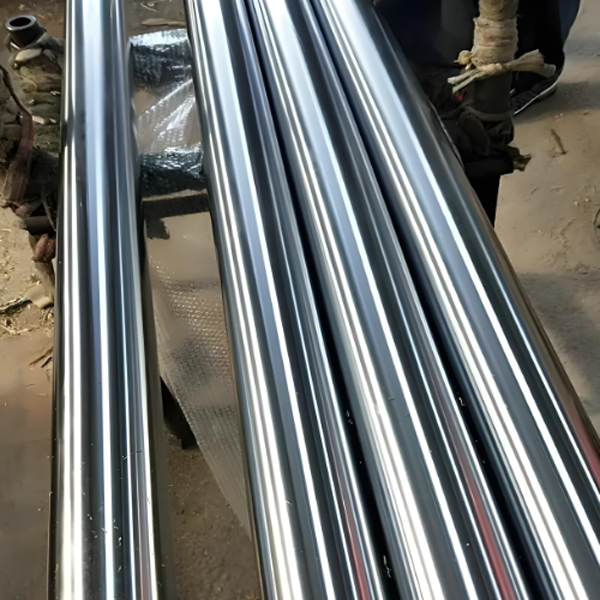

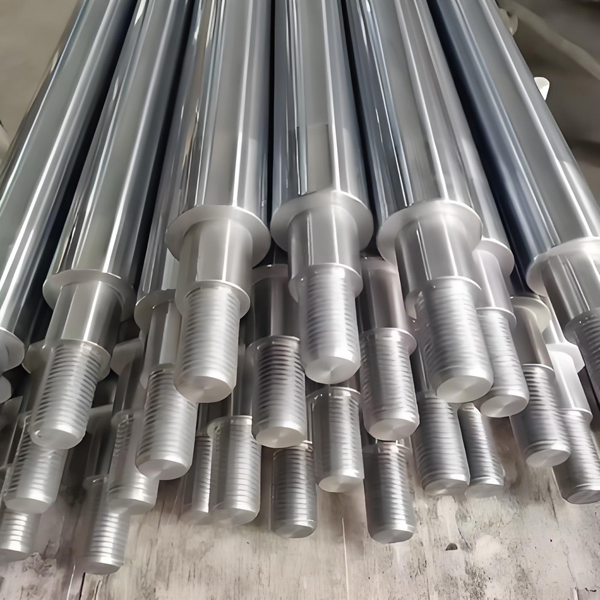

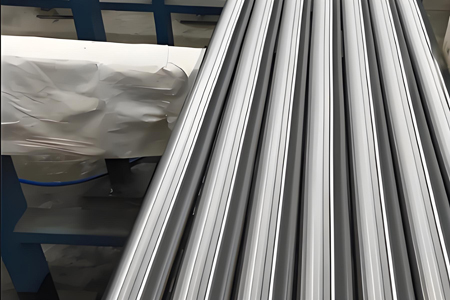

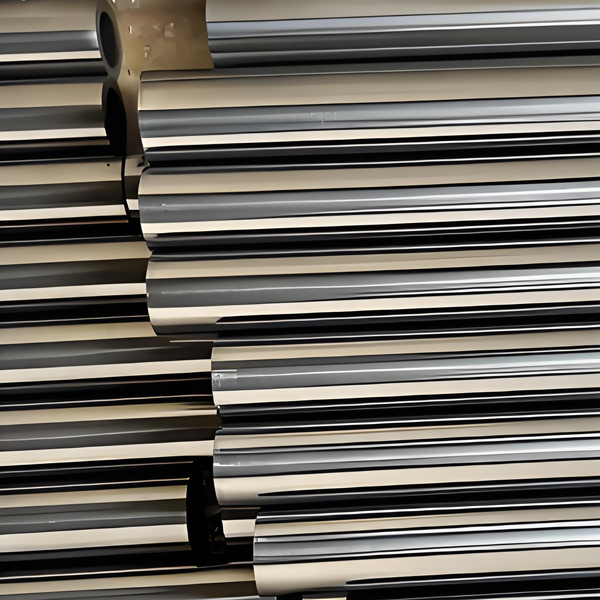

45 # chrome plated piston rod is a piston rod product made of 45 # steel (carbon structural steel) as the substrate and treated with chrome plating. It has the characteristics of high wear resistance and high precision; 45 # steel is a high-quality carbon structural steel, with a surface hardness of 45-52HRC after quenching. It has high strength, toughness, and cutting performance, making it suitable for making shaft parts. Enhanced wear resistance and rust prevention through surface chrome plating treatment, suitable for high-precision requirements scenarios
The reason why the 45 chrome plated piston rod can become the “backbone” of the industrial transmission field is due to its four core characteristics, which together build its unparalleled reliability:
Combining rigidity and flexibility: The 45 steel substrate has achieved a perfect balance of high strength and good toughness through quenching and tempering treatment, and can withstand huge tensile and compressive stresses and impact loads, ensuring that the rod is not easily bent or broken.
Indestructible: The surface hard chromium layer has extremely high hardness (HV ≥ 800), and its wear resistance far exceeds that of ordinary steel. It can easily cope with long-term and high-frequency friction with seals, greatly extending its service life.
Invincible to all poisons: The dense chromium layer effectively isolates corrosive media such as water vapor, acid and alkali, providing excellent rust and corrosion resistance, and can adapt to harsh industrial environments such as humidity and dust.
Smooth as a mirror: After precision grinding and polishing, the surface can achieve mirror level smoothness (Ra ≤ 0.2 μ m), which not only has low friction coefficient and smooth movement, but also effectively protects the seal and prevents medium leakage.
The 45 chrome plated piston rod is the core moving component of industrial hydraulic cylinders and cylinders. It is essentially a composite structural component:
‘Bone’ and ‘Soul’: Its matrix (core) is high-quality 45 carbon structural steel, responsible for providing structural strength and load-bearing capacity, and is the ‘soul’ of the product.
Skin “and” armor “: Its surface is a hard chromium layer covered by electroplating process, with a thickness usually between 20-40 microns. This layer of armor endows it with super strong surface performance, which is the foundation for its survival under harsh working conditions.
It is like a ‘steel warrior’, with a tough heart and a hard exterior. It is responsible for transmitting power and bearing loads in mechanical equipment, and is a key link in achieving linear reciprocating motion.
The design of the 45 chrome plated piston rod enables it to handle various complex working environments with ease:
High load condition: With the solid foundation of 45 steel, it can stably withstand the enormous pressure from heavy machinery.
High friction condition: The hard chromium coating ensures that it can maintain long-term dimensional stability and surface integrity even in the face of continuous friction from the seal during frequent reciprocating motion.
Micro corrosive environment: For non strong acid and strong alkali environments with humidity, water vapor, and certain chemical media, the coating can provide effective protection and avoid rapid corrosion.
Wide temperature range: able to maintain stable performance within a wide temperature range of -20 ℃ to+200 ℃ (depending on the sealing system).
Its working principle is intuitive and efficient:
Driven by hydraulic oil or compressed air, the piston rod and piston move back and forth in a straight line inside the cylinder. One end of the piston rod is connected to the piston and bears the pressure of the medium; The other end extends out of the cylinder and is connected to external working mechanisms such as excavator buckets and injection molding machine molds. It directly converts the fluid pressure energy inside the cylinder into mechanical energy, thereby pushing the external load to perform a series of actions such as extension, retraction, ejection, and compression. The hard chromium layer on its surface ensures low friction, high precision, and long lifespan during this process.
Its outstanding performance makes it ubiquitous in almost all industrial fields:
Construction machinery: hydraulic cylinders for excavators, cranes, and loaders – a direct manifestation of strength.
Factory automation: various pneumatic fixtures, pushing cylinders, positioning cylinders – the “arms” of automated production.
Injection molding equipment: the movement of the injection stage and the ejection cylinder of the injection molding machine – the guarantee of precision manufacturing.
Vehicle manufacturing: The piston rod of automotive shock absorbers – the cornerstone of comfort and safety.
Metallurgical mines: hydraulic cylinders for steel rolling equipment and crushers – persevering under extreme working conditions.
Agricultural machinery: lifting cylinders for harvesters and tractors – assisting modern agriculture.
Compared with alternative solutions such as stainless steel piston rods, the core advantage of 45 chrome plated piston rods in material selection lies in their ultimate cost-effectiveness:
Cost advantage: While achieving similar surface properties (wear resistance, low friction), its cost is much lower than using stainless steel as a whole (such as SUS420).
Performance balance: It perfectly combines the mechanical properties of ordinary carbon steel with the surface properties of chromium layer, which is sufficient to meet more than 90% of industrial application needs.
Mature technology: The manufacturing process is mature and stable, the supply chain is complete, and procurement, processing, and replacement are all very convenient.
To adapt to industrial development, 45 chrome plated piston rods are evolving in the following directions:
High performance: Develop thicker, denser, and more cohesive nano composite chromium plating layers to pursue longer service life.
Environmental Protection: Explore environmentally friendly surface treatment technologies (such as high-speed laser cladding, environmentally friendly ceramic plating, etc.) to replace traditional chrome plating and reduce environmental pollution.
Intelligent manufacturing: Introducing automated production lines and online inspection equipment to achieve more precise size control and quality traceability, improving product consistency and reliability.
