1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

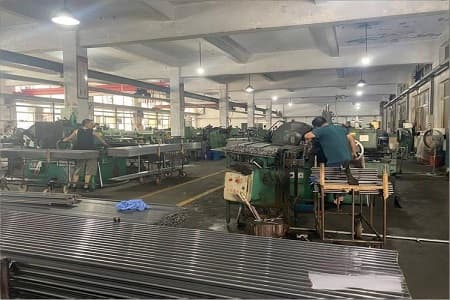

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.
As a leading manufacturer in precision motion components, we specialize in producing high-performance linear guide shafts that form the critical backbone of industrial automation and machinery. Our product range includes precision chrome plated steel bars, hollow piston rods, and hard chrome plated piston rods engineered to deliver exceptional accuracy and longevity in demanding applications. These components are manufactured to exacting standards, ensuring reliable operation in systems requiring precise linear motion and high load-bearing capacity.
Our linear guide shafts and piston rods are integral components across diverse industries:
Automotive Manufacturing: Employed in suspension systems, braking mechanisms, and power steering units for enhanced vehicle performance and safety.

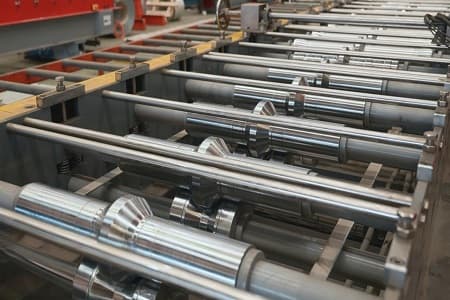

Industrial Machinery: Essential for hydraulic cylinders, pneumatic actuators, and compressors, providing reliable connection and power transmission in repetitive linear motion systems.
Construction Equipment: Used in excavators, bulldozers, and other heavy machinery where robust hydraulic cylinders require durable, wear-resistant piston rods.
Aerospace Technology: Critical for landing gear systems and flight control surfaces, where failure is not an option.

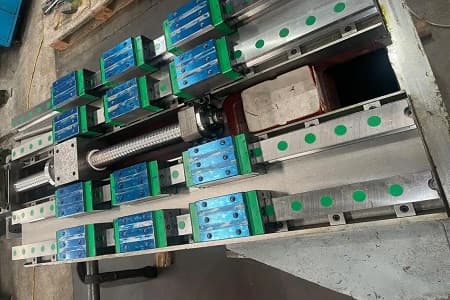

Packaging and Material Handling: Integrated into automated conveyor systems and robotic positioning arms.
Uncompromising Quality: We utilize superior materials like 45# steel for standard applications and 40Cr alloy steel for heavy-duty operations. Each shaft undergoes rigorous heat treatment processes including high-frequency quenching and nitride treatment, achieving surface hardness of HRC 50-60 for exceptional wear resistance.
Precision Engineering: Our manufacturing process maintains tight tolerances with surface roughness of Ra 0.4-0.8μm and straightness accuracy within 0.1mm/m. This ensures perfect alignment and smooth operation within linear bearing systems, minimizing vibration and energy loss.
Advanced Surface Technology: The proprietary hard chrome plating process significantly enhances corrosion resistance and surface durability. This electroplated layer reduces friction with sealing elements and prolongs overall system lifespan by up to 30% compared to untreated surfaces.
High concentricity (≤0.02mm) for smooth, binding-free operation
Enhanced fatigue strength through roller burnishing processing
Superior load capacity for both radial and axial stresses
Custom modifications including special threading, drilling, and keyways
Types of Linear Guide Shafts
We offer comprehensive solutions for various operational needs:

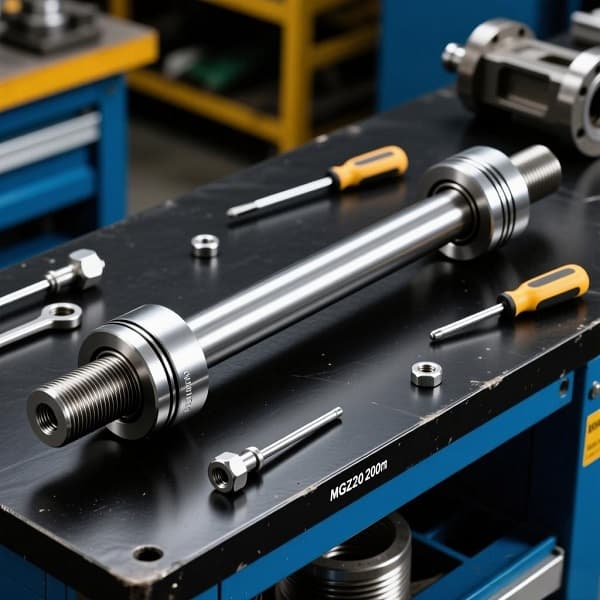

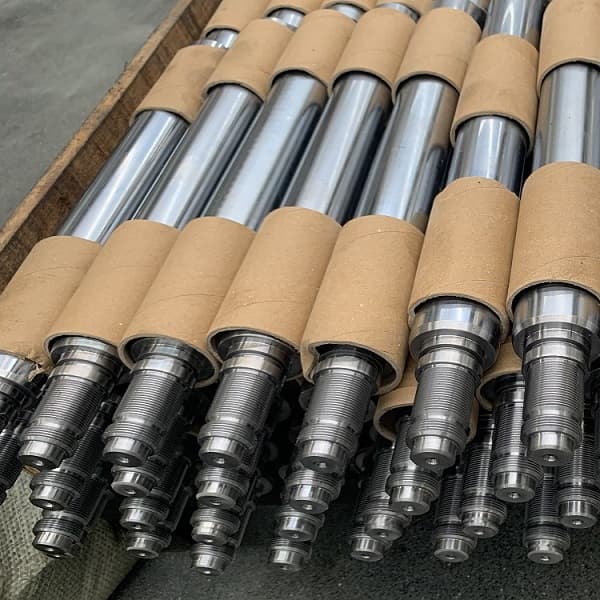

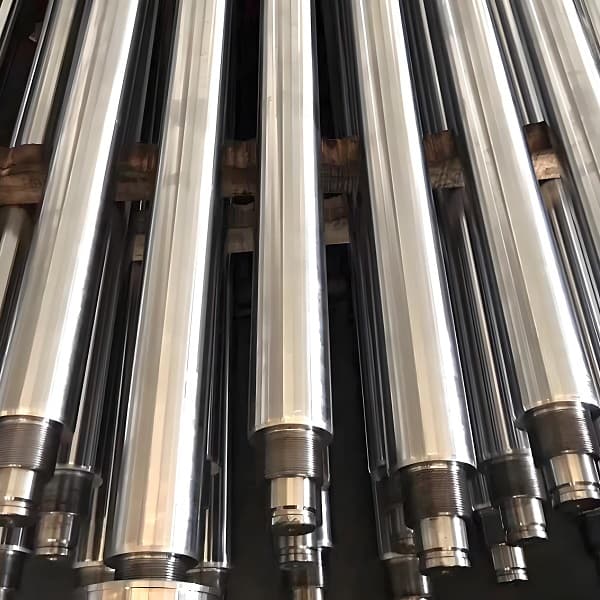

Solid Piston Rods: Standard solid construction for general industrial applications requiring rigidity and precision.
Hollow Piston Rods: Lightweight design for applications where weight reduction is critical without compromising strength.

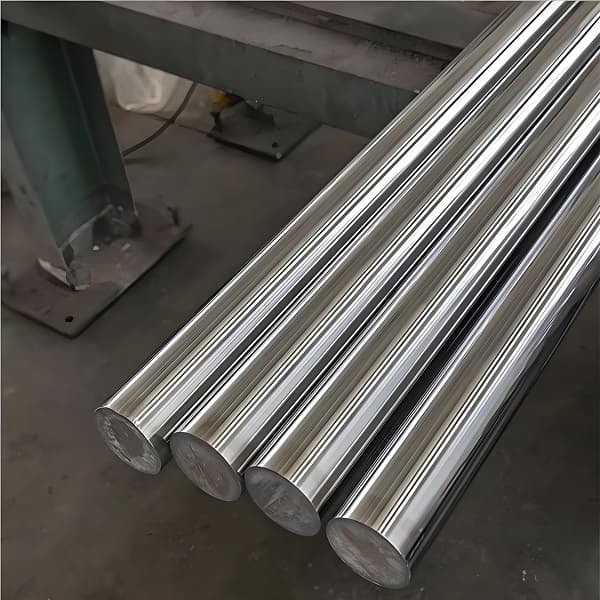

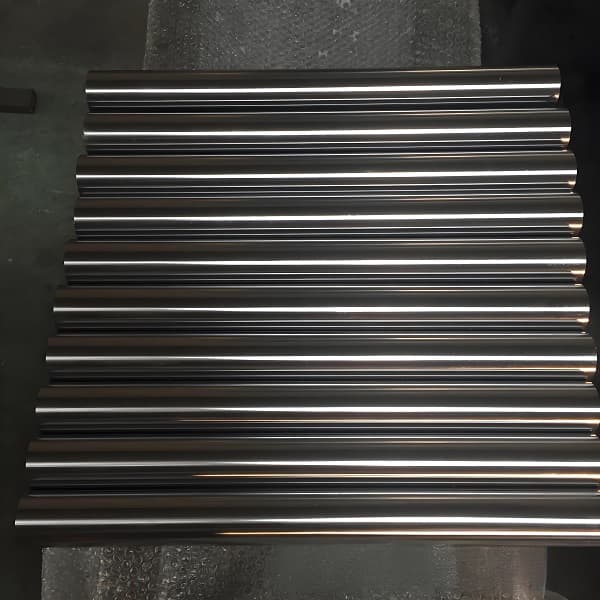

Hard Chrome Plated Bars: Exceptional surface properties for corrosive environments and high-wear situations.
Precision Ground Shafts: Ultra-precise components for high-accuracy positioning systems and medical equipment.
Custom Engineered Solutions: Tailored specifications for unique applications, including special diameters, lengths, and material compositions.
Q: What makes your linear guide shafts suitable for high-frequency applications?
A: Our shafts undergo specialized heat treatment and precision grinding processes that create a surface resistant to micro-welding and galling, even under rapid cyclic movements.
Q: Can you provide custom lengths and diameters?
A: Yes, we specialize in customized solutions. We can produce shafts ranging from miniature diameters to large-scale dimensions with various machining adaptations to meet specific design requirements.
Q: How does your chrome plating process enhance performance?
A: Our electroplated hard chrome layer significantly improves surface hardness, corrosion resistance, and wear characteristics. This process reduces friction with seal components, lowering operating temperatures and extending seal life.
Q: What quality certifications do you maintain?
A: We implement stringent quality control procedures throughout our manufacturing process, with full traceability and compliance with international standards for material composition and dimensional accuracy.
Q: How do you ensure straightness and precision in long-length shafts?
A: We employ specialized straightening techniques and precision grinding equipment capable of maintaining tight tolerances even across extended lengths, ensuring optimal performance in application.
Choose our linear guide shafts for unmatched reliability in your motion control systems. Contact us today to discuss how our precision components can enhance your equipment’s performance and durability.
