1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

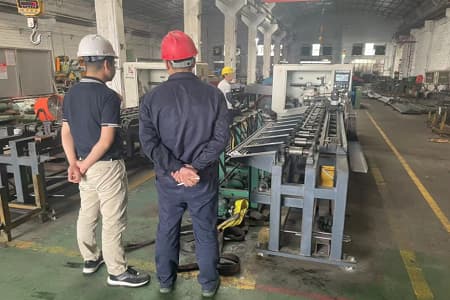

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.
As a premier manufacturer of precision motion components, we specialize in producing Linear Motion Guide Shafts that redefine performance and reliability in industrial applications. Our extensive expertise in crafting Piston Rods, Hydraulic Piston Rods, Precision Chrome Plated Steel Bars, Hollow Piston Rods, and Hard Chrome Plated Piston Rods directly translates to exceptional quality in our Linear Motion Guide Shaft product line.

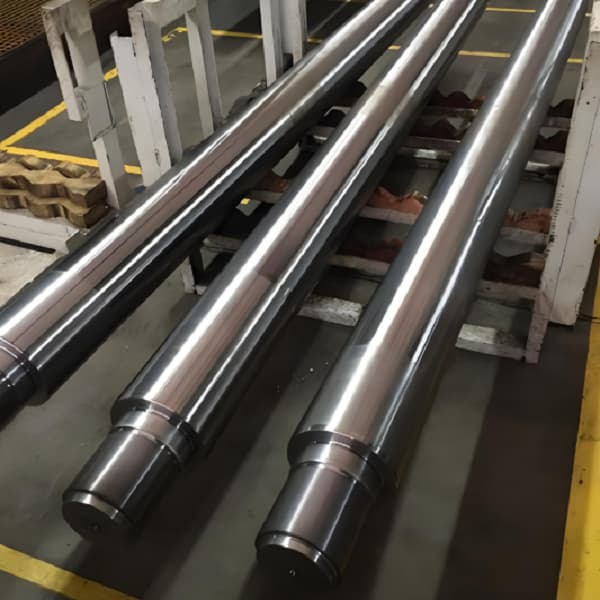

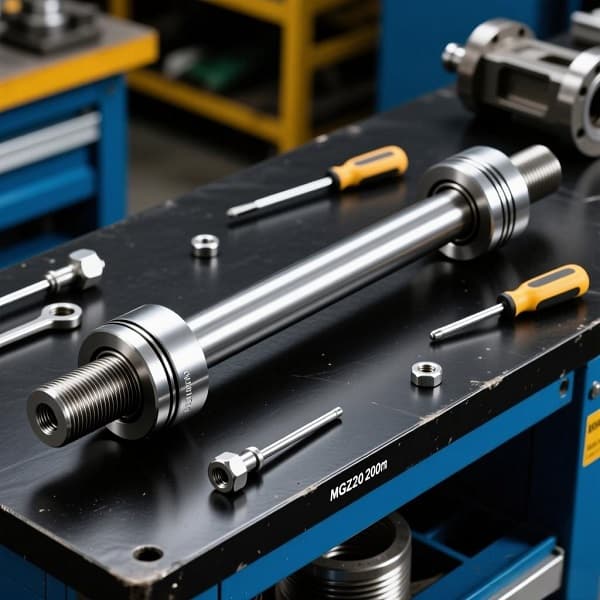

Our Linear Motion Guide Shafts are precision-engineered components designed to provide accurate linear guidance in various mechanical systems. These shafts undergo rigorous manufacturing processes including precision grinding, advanced hard chrome plating, and specialized heat treatments to ensure optimal performance in demanding applications. The result is a product that offers exceptional straightness, surface finish, and dimensional stability.
Applications
Linear Motion Guide Shafts serve critical functions across numerous industries where precise linear motion is essential. They are integral components in automation systems, CNC machinery, robotic assemblies, precision measuring equipment, packaging machinery, and material handling systems. Their ability to provide smooth, accurate linear movement makes them indispensable in applications requiring high precision and repeatability.
Our Linear Motion Guide Shafts boast exceptional surface hardness (reaching 58-62 HRC through specialized heat treatment processes), providing superior wear resistance and extended service life. The precision grinding process achieves surface finishes as low as Ra0.2μm, significantly reducing friction and enabling smooth operation. Our advanced hard chrome plating technology provides excellent corrosion resistance while maintaining precise dimensional tolerances.
The manufacturing process includes roller burnishing treatment that improves fatigue strength by up to 25% and enhances surface hardness. Our Linear Motion Guide Shafts maintain exceptional straightness (0.2/1000mm) and comply with international tolerance standards, ensuring reliable performance in precision applications.

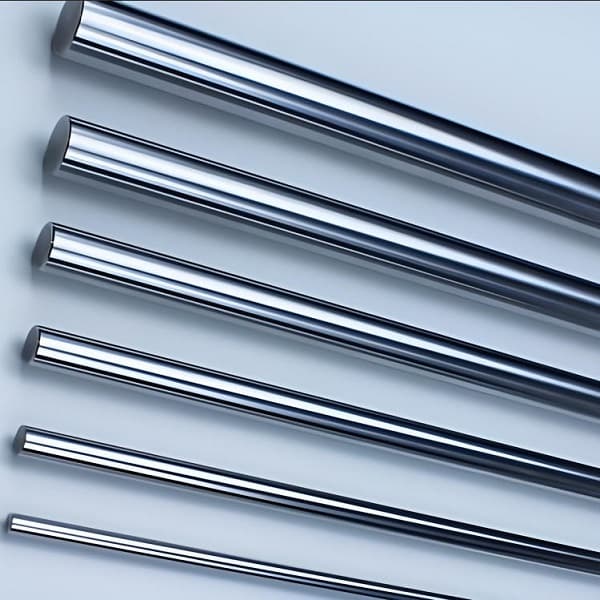

We produce Linear Motion Guide Shafts in diameters ranging from 6mm to 300mm with lengths up to 16 meters. Materials include high-grade carbon steels (CK45, SAE1045), alloy steels (42CrMo, 40Cr), and specialty materials for specific environmental conditions. The chrome plating thickness is meticulously controlled to ensure consistent performance across all products, typically ranging from 20-30 microns.
Product Variants

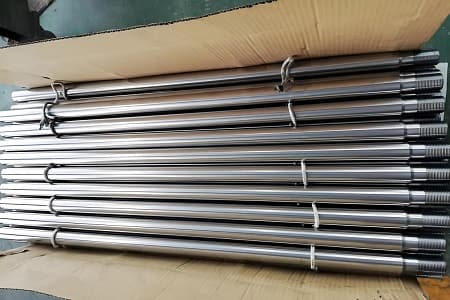

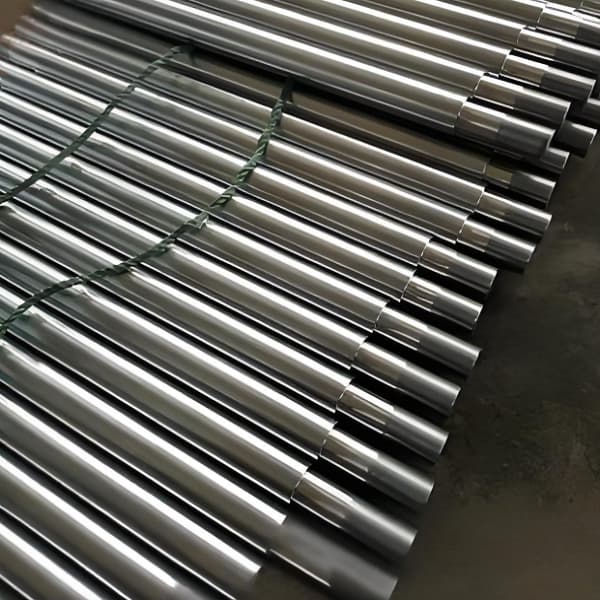

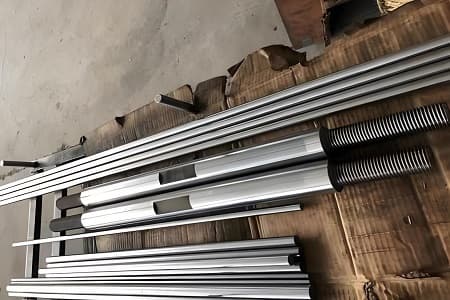

Our comprehensive product range includes solid Linear Motion Guide Shafts, hollow designs for weight-sensitive applications, stainless steel variants for corrosive environments, and custom-configurable shafts with specialized end treatments. We also offer products with advanced surface treatments including double-layer plating and composite coatings for extreme operating conditions.
With decades of specialized experience in precision manufacturing, we have developed proprietary processes that set our Linear Motion Guide Shafts apart from conventional offerings. Our vertical integration allows for complete quality control throughout the manufacturing process, from material selection to final inspection. We maintain IATF 16949 quality management systems and provide comprehensive technical support throughout the design and specification process.
Our commitment to innovation ensures that we consistently deliver products that outperform industry standards for durability and reliability. The same expertise that goes into our premium Hydraulic Piston Rods and Precision Chrome Plated Steel Bars is applied to every Linear Motion Guide Shaft we produce.
Q: What makes your Linear Motion Guide Shafts different from standard options?
A: Our shafts undergo specialized processes including precision grinding, advanced hard chrome plating, and roller burnishing, resulting in superior surface quality, enhanced wear resistance, and extended service life.
Q: Can you provide custom-length shafts?
A: Yes, we offer extensive customization options including specific length requirements (with precision down to 0.1mm units), diameter variations, and special end treatments to meet unique application needs.
Q: How does chrome plating improve shaft performance?
A: Chrome plating significantly enhances surface hardness, provides excellent corrosion resistance, reduces friction, and improves wear characteristics, ultimately extending the component’s operational lifespan.
Q: What industries do you typically serve?
A: We serve a diverse range of industries including automotive manufacturing, industrial automation, robotics, medical equipment, food processing machinery, and general mechanical engineering.
Q: Do you provide technical support for shaft selection?
A: Absolutely. Our engineering team offers comprehensive technical support to help you select the optimal Linear Motion Guide Shaft for your specific application requirements, ensuring maximum performance and reliability.
Trust our expertise for your Linear Motion Guide Shaft requirements and experience the difference that precision engineering, superior quality, and technical expertise can make to your operations. Contact us today to discuss how our products can enhance your application performance.
