1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

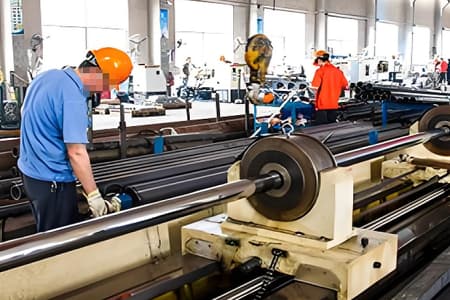

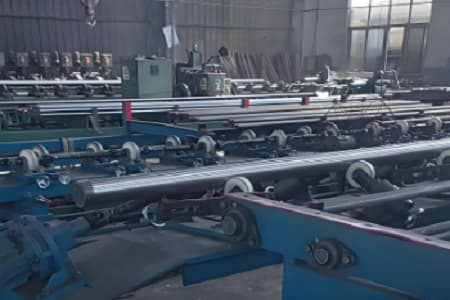

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.
As a specialized manufacturer in the field of precision hydraulic and pneumatic components, we provide high-quality piston rods specifically designed for mini round body cylinders. These critical components are engineered to meet rigorous international standards, ensuring reliable performance in compact automation systems. Our product line includes Precision Chrome Plated Steel Bars, Hollow Piston Rods, and Hard Chrome Plated Piston Rods, all crafted to enhance the efficiency and service life of sophisticated machinery.
Mini round body cylinder piston rods are essential for converting fluid power into precise linear motion within compact spaces. These rods are characterized by their small diameter, high precision, and exceptional surface quality, making them ideal for applications requiring minimal friction and exact movement. Manufactured from high-grade materials and subjected to rigorous processing, our rods guarantee superior dimensional accuracy and longevity, even in demanding operational environments.
Our mini piston rods serve a vital role across numerous industries:
Factory Automation: Widely used in robotic arms, pick-and-place systems, and precision assembly lines where space is limited and accuracy is paramount.
Medical Equipment: Critical in diagnostic devices, patient handling systems, and surgical robots requiring smooth, reliable, and clean operation.
Electronics Manufacturing: Employed in circuit board assembly, component insertion, and testing equipment due to their precise movement and compact size.
Packaging Machinery: Integral to high-speed filling, capping, and labeling machines that demand rapid and repeatable linear motion.
Choosing our mini round body piston rods delivers significant benefits:
Exceptional Material Quality: We utilize high-strength stainless steels and alloy steels, ensuring excellent corrosion resistance and mechanical properties for long-term durability.
Advanced Surface Treatment: Our proprietary hard chrome plating process delivers an ultra-smooth, uniform surface (typically achieving Ra 0.4 μm or lower). This minimizes friction, reduces wear on seals , and provides outstanding corrosion resistance.
Precision Engineering: Each rod is precision-ground and polished to exacting tolerances, ensuring perfect fitment and smooth operation within the cylinder, which contributes to consistent performance and low leakage.
Customization Options: We offer tailored solutions for diameter, length, material grade, and end-fitting configurations (e.g., threaded ends ) to meet specific OEM requirements and design constraints.

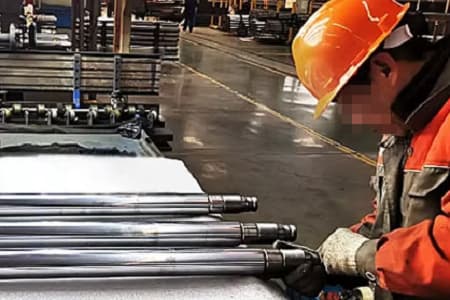

Rigorous Quality Assurance: Every component undergoes meticulous inspection for hardness, straightness, surface finish, and dimensional accuracy, guaranteeing reliability in critical applications.
Selecting us as your piston rod supplier means partnering with a specialist dedicated to excellence in miniature component manufacturing. Our deep expertise in metallurgy and precision machining allows us to produce rods that enhance cylinder efficiency, reduce downtime, and improve overall system performance. We combine competitive pricing with unwavering quality, offering full technical support and traceability throughout your project.
Standards Compliance: Manufactured to relevant international standards for dimensional accuracy and performance.
Materials: High-grade Stainless Steel (e.g., AISI 303, 304 ), Alloy Steel.
Hardness: Precision heat-treated to achieve optimal surface and core hardness for wear resistance.
Surface Finish: Precision ground and polished to achieve exceptionally low surface roughness (e.g., Ra ≤ 0.4 μm).
Chrome Plating: Thick, dense hard chrome plating for enhanced wear and corrosion resistance.
Straightness: Precisely controlled to ensure smooth, binding-free operation within the cylinder barrel.
We cater to diverse needs with a comprehensive range of mini piston rods:
Solid Mini Piston Rods: The standard choice for most applications, offering a robust balance of strength and precision for general automation tasks.
Hollow Mini Piston Rods: Designed for weight-sensitive applications or those requiring internal routing of wires, sensors, or other media .
Hard Chrome Plated Rods: Standard finish providing excellent durability and resistance to wear in challenging environments.

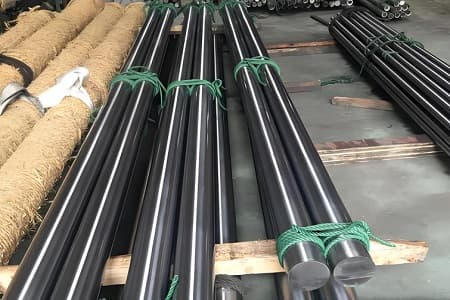

Precision Ground & Polished Bars: Ready-to-install components for cylinder manufacturing or maintenance, available in various diameters and lengths.
Custom-Engineered Solutions: Special rods designed for unique applications, including those with specific porting, unusual geometries, or material requirements.

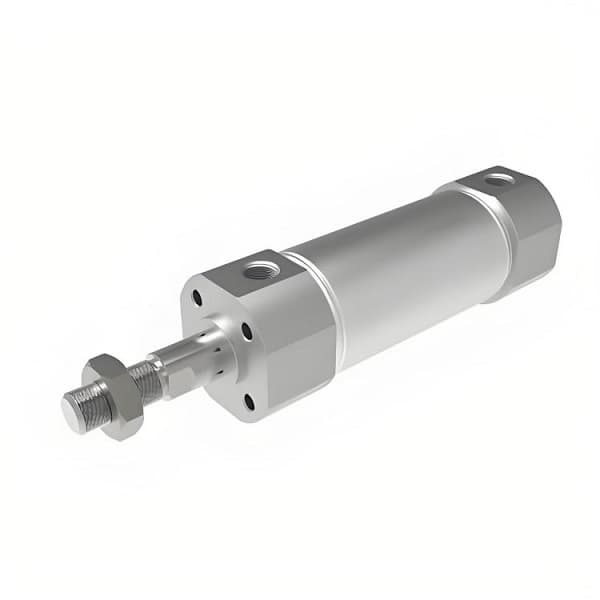

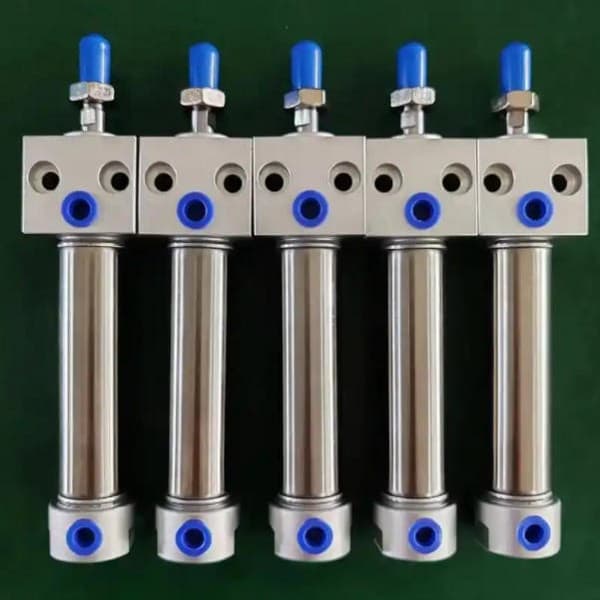

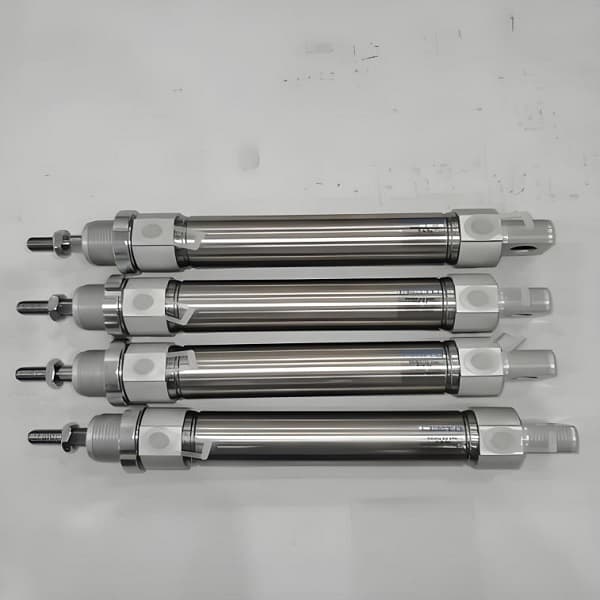

Q1: What are the key advantages of using a mini round body cylinder?
Mini round body cylinders offer a compact design, lightweight construction, and ease of installation in space-constrained applications. They provide precise linear motion essential for modern automation, robotics, and delicate handling tasks.
Q2: Why is the surface finish so critical on a miniature piston rod?
A superior surface finish is paramount for minimizing friction and wear against dynamic seals. This reduces operating friction, prevents fluid leakage, lowers heat generation, and significantly extends the service life of both the rod and the cylinder’s sealing system.
Q3: Can you manufacture piston rods for non-standard mini cylinder sizes?
Yes. A core strength of our operation is the ability to produce custom rods tailored to specific customer requirements, including non-standard diameters, lengths, strokes, and special material treatments.
Q4: What materials are commonly used for these miniature rods?
Common materials include high-strength alloy steels for general purposes and various grades of stainless steel (like AISI 303 or 304 ) for applications requiring enhanced corrosion resistance.

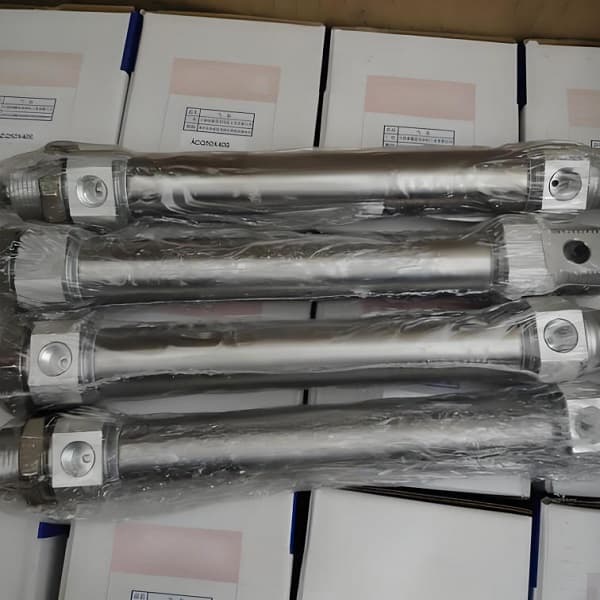

Q5: Do you offer international shipping for your products?
Absolutely. We have extensive experience in exporting our precision-engineered piston rods to customers worldwide, supported by a reliable logistics network to ensure timely delivery.
For more information or to discuss your specific requirements for high-performance mini round body cylinder piston rods, please contact our engineering team today. Let us provide the precision that drives your innovation.
