In the field of industrial power transmission, hydraulic cylinders play an indispensable role. Among them, the single acting piston hydraulic cylinder stands out among many application scenarios due to its unique design and excellent economy. This article will take you through a comprehensive understanding of this key component
Simple structure and low cost: With only one oil port, the internal structure is much simpler than that of a double acting cylinder, which means lower manufacturing, procurement, and maintenance costs.
Built in reset, safe and reliable: usually relying on springs, self weight or external loads to return, without the need for complex hydraulic circuits to control the return action, the system construction is simple.
Small space occupation: In some situations where installation space is limited, its simple structure makes it easier to arrange.
Clear fault mode: In the absence of pressure, it can automatically reset (spring reset type) or remain in a certain position, which is crucial in certain safety applications.
It is precisely these characteristics that make single acting hydraulic cylinders the optimal solution in situations where bidirectional active power is not required.

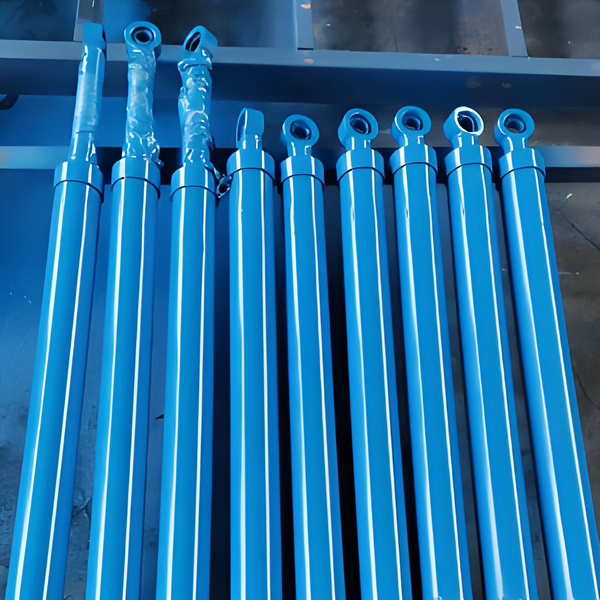

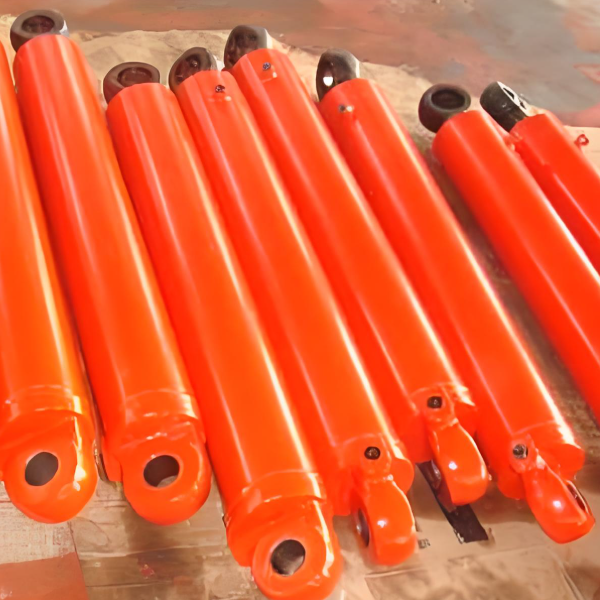

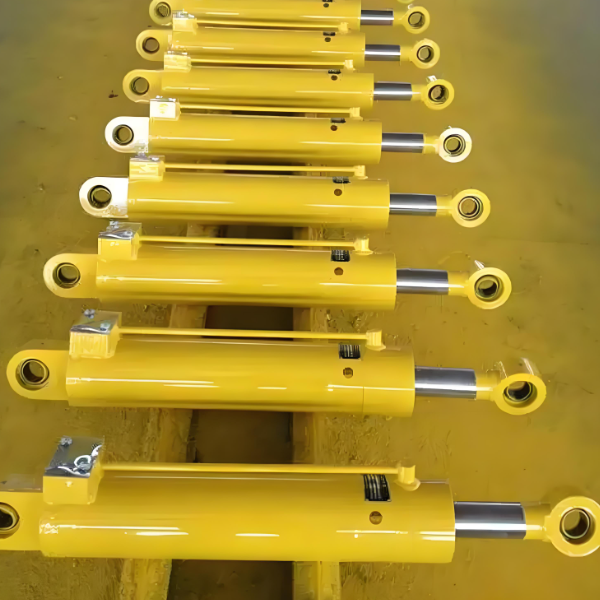

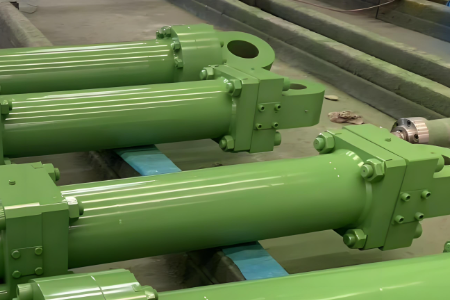

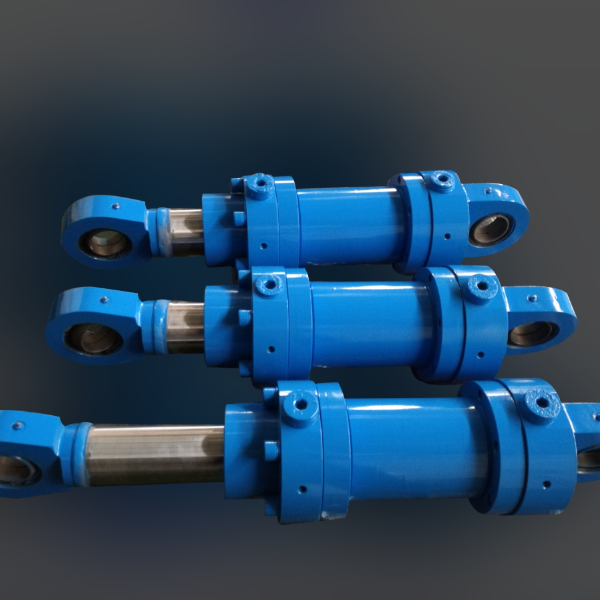

A single acting piston hydraulic cylinder is a hydraulic actuator that is driven only by hydraulic oil at one end, while the movement (return) at the other end is achieved through external forces such as spring force, the weight of the piston rod and load, or other mechanical forces.
Its basic structure mainly includes:
Cylinder: Contains hydraulic oil and pistons.
Piston: It slides inside the cylinder and converts hydraulic energy into mechanical energy.
Piston rod: connected to the piston, transmitting thrust.

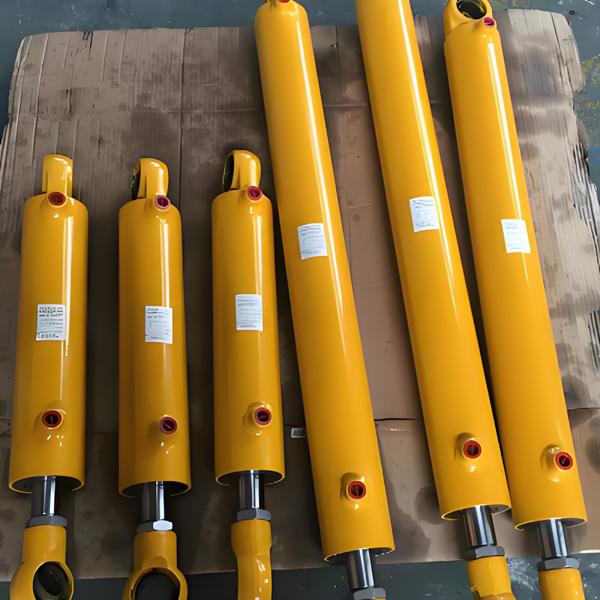

One oil port: used for entering and exiting pressure oil.
Reset spring (commonly seen in spring reset type): After hydraulic pressure is relieved, push the piston back to its initial position.
The design of the single acting hydraulic cylinder enables it to flexibly adapt to various complex working conditions:
Spring reset type: suitable for situations that require forced and automatic return and allow space, such as fixtures, small presses, etc.
Self weight reset type: widely used in vertical installation scenarios, such as hydraulic jacks, lifting platforms, etc., using the load’s own gravity to achieve return, energy-saving and reliable.
Adverse environment: Due to its simple oil system and few sealing points, the failure rate is relatively low in dusty, humid and other environments.
Portable devices: Due to their compact structure and relatively light weight, they are often used in handheld or mobile hydraulic tools.
Its working principle is clear and concise, taking the most common spring reset type as an example:
Extension stage (work schedule):
The pressure oil generated by the hydraulic pump enters the rodless chamber of the cylinder through the only oil port.
The pressure oil acts on the piston end face, generating sufficient thrust to overcome the preload force of the spring, external loads, and friction.
The piston and piston rod extend outward under the push of oil pressure, doing work (lifting, compressing, etc.) while compressing the return spring.
Retraction stage (return stroke):
The control system cuts off the oil circuit and connects the return oil circuit, and the hydraulic oil in the cylinder is discharged back to the oil tank under the restoring force of the spring.
The compressed spring releases energy, pushing the piston and piston rod to automatically retract to the initial position.
The entire return process does not consume hydraulic energy.
For the self weight reset type, the principle is similar, except that the “spring force” is replaced with “the self weight of the piston rod and load”.

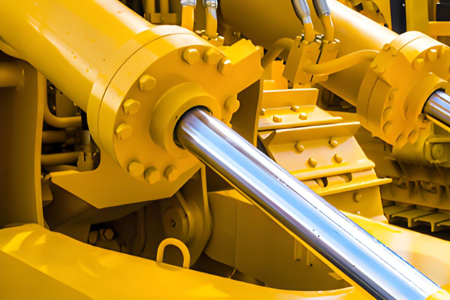

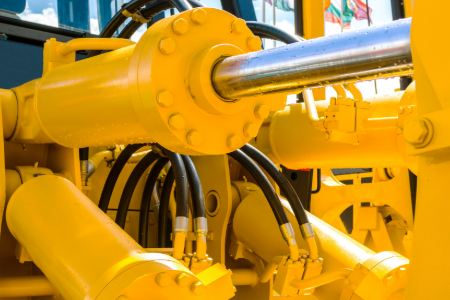

Construction machinery: excavator bucket locator, certain leg cylinders.
Automotive and Maintenance: Hydraulic jacks are the most typical and well-known application.
Agricultural machinery: tractor suspension system, lifting device for harvester cutting platform.
Industrial equipment: small press machines used for clamping, positioning, and punching, as well as ejector devices inside molds.
Building doors and windows: automatic door closers for large warehouse doors and fire doors.
Special tools: hydraulic nut tensioner, hydraulic shear, etc.
When designing and selecting, choosing a single acting hydraulic cylinder is usually based on the following key decision factors:
Cost control: When the project budget is tight, it is the best choice as it can significantly reduce system and component costs.
Single functional requirement: When the working process only requires active power in one direction, and there is no power requirement for the return journey or it can be achieved through other means.
System simplification: helps simplify the entire hydraulic system, reduce the number of valves, pipelines, and joints, improve system reliability, and reduce installation and maintenance complexity.
Safety considerations: The “fail safe” mode provided by spring reset (such as automatic retraction in case of power failure) is crucial in certain applications.
Despite being a mature technology, single acting piston hydraulic cylinders are still evolving, with future trends mainly reflected in:
Material and process innovation: Adopting lighter, stronger, and more corrosion-resistant materials (such as composite materials, high-performance aluminum alloys) and surface treatment technologies to extend lifespan and reduce weight.
Compact and high-performance: While maintaining low cost, smaller volume and higher power density can be achieved through optimized design.
Intelligent integration: Integrate position or pressure sensors to provide feedback on their status, integrate into Internet of Things (IoT) systems, and achieve predictive maintenance and intelligent control.
Environmental Protection and Energy Conservation: Better adaptation to biodegradable hydraulic oil, optimization of sealing technology to reduce leakage, and meeting increasingly stringent environmental requirements.
Customized solutions: Provide highly customized products for specific industries (such as food and medicine) with special needs (such as cleanroom design and corrosion resistance).
In summary, single acting piston hydraulic cylinders are a perfect embodiment of the “less is more” philosophy in hydraulic technology. It achieves an excellent balance between cost, reliability, and applicability through simplified design. Whether in common maintenance workshops or complex industrial production lines, it will continue to serve as a fundamental and critical driving component, playing an irreplaceable role.
