1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

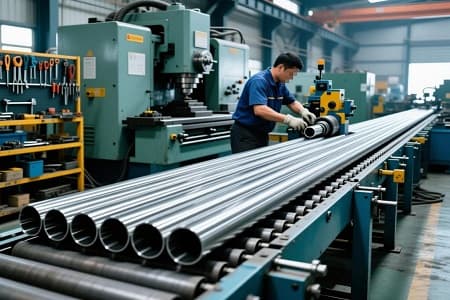

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.

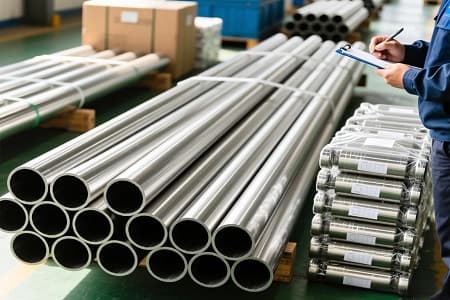

3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

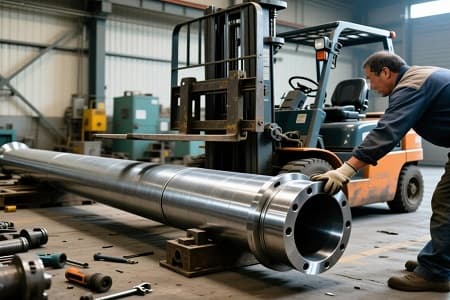

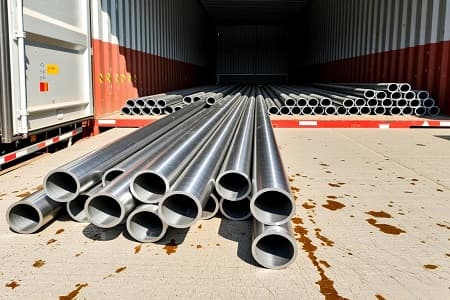

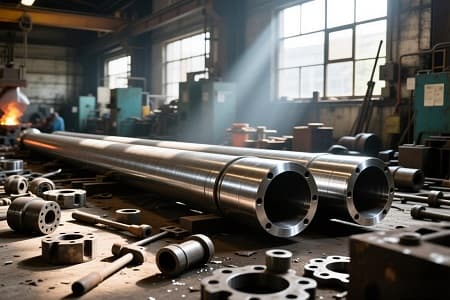

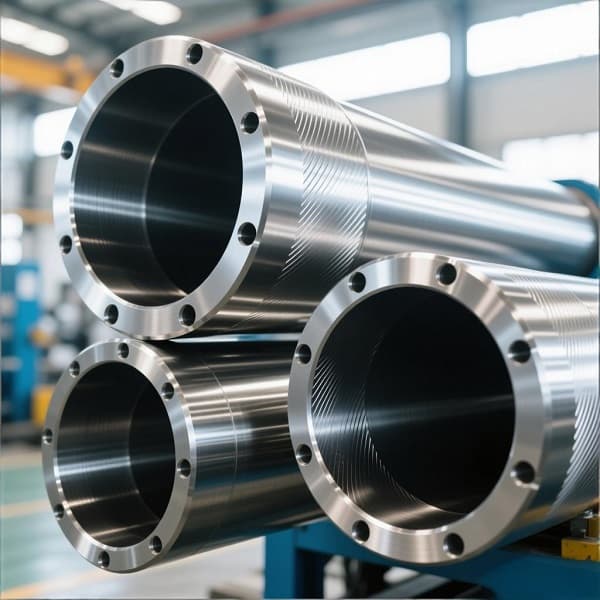

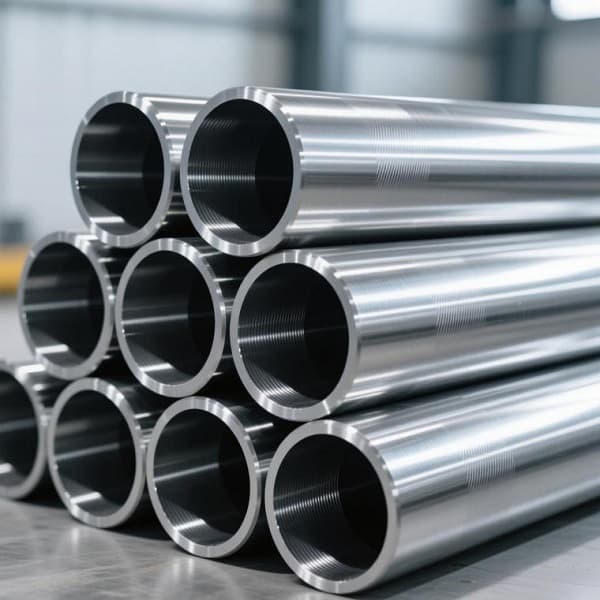

In modern industry, anti-corrosion chrome honed tube (chrome-plated honed tube) is a key high-performance material, widely used in hydraulic systems, automation equipment, and precision machinery. This specially treated steel tube combines exceptional corrosion resistance with high-precision dimensional control and superior surface quality, making it an indispensable core component in many industrial applications.

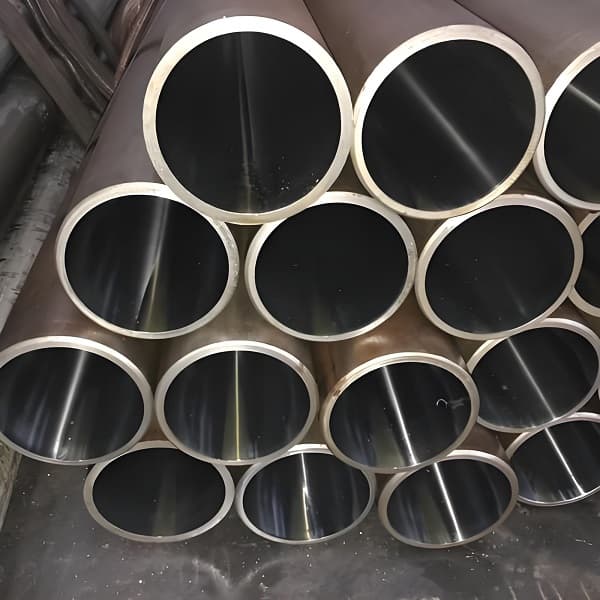

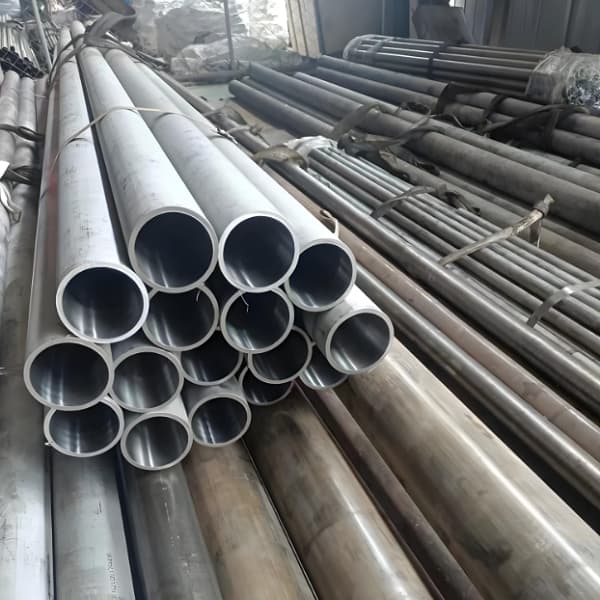

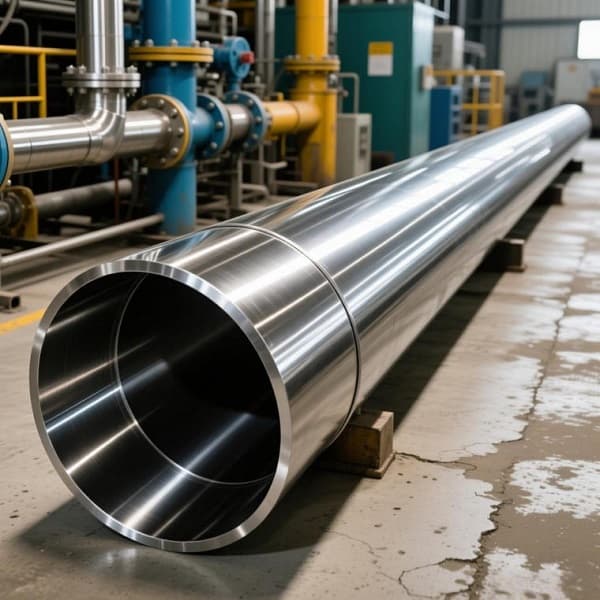

Anti-corrosion chrome honed tube is a seamless steel tube produced through precision machining and surface treatment. The manufacturing process involves honing after cold drawing or hot rolling, followed by electroplating a hard chrome coating on the surface. This chrome coating, with a surface hardness of 50-60 degrees, provides excellent wear and corrosion resistance. The honing process involves using a grinding stone and sandpaper to remove a small amount of material to achieve extremely precise inner diameter dimensions and an improved surface finish, typically achieving a surface roughness (Ra) of 0.2-0.4μm.
Honing is a critical step in the manufacturing process. This process uses a honing head equipped with special grinding bars to perform a finishing operation on the pre-machined inner surface of the tube. Honing simultaneously achieves three key objectives: dimensional accuracy, geometric correction, and surface quality improvement. Typical honed tubes achieve internal dimensional accuracy up to H8 (DIN 2391 standard), with a surface roughness Ra of 0.2-0.4μm and a straightness error of no more than 0.5mm/1000mm1. This precise internal surface treatment reduces friction and improves sealing performance, making it particularly suitable for applications such as hydraulic and pneumatic cylinders.
The manufacturing process for Anti-Corrosion Chrome Honed Tube incorporates a variety of precision machining technologies, with each step directly impacting the performance and quality of the final product. The production process begins with the selection of raw materials, typically high-quality carbon steel or low-alloy steels such as ST52 (German standard) or SAE1020 (American standard), which offer excellent machinability and a strong foundation.
Anti-Corrosion Chrome Honed Tube plays an important role in various industrial sectors:
Hydraulic Systems: As the primary material for hydraulic cylinder bodies, it is widely used in agricultural equipment, lifting equipment, food processing equipment, and machine tools.
Automation Industry: It is crucial in linear motion systems (such as piston rods and guide rods) within automated equipment.
Machinery Manufacturing: It is used in various types of machinery, including packaging and printing machinery, woodworking machinery, fitness equipment, and power tools.
Bearing Industry: Due to its wear and corrosion resistance, it is widely used in linear and sliding bearings.
Although chrome plating technology provides excellent corrosion protection, the hexavalent chromium compounds used in traditional chrome plating processes are highly toxic and carcinogenic, posing a threat to the environment and workplace safety. Therefore, chrome-free alternative technologies have become a key trend in the development of anti-corrosion honed tubes.
In recent years, a variety of chromium-free anti-corrosion technologies have been developed and applied to steel pipe corrosion treatments:
Anti-Corrosion Chrome Honed Tube: This anti-corrosion coating technology is completely free of chromium compounds. It forms a highly leak-tight film that blocks the intrusion of external corrosive agents. This technology not only avoids the environmental and health concerns of chromium but also provides excellent corrosion protection, achieving no red rust for up to 2000 hours in salt spray testing and up to 200 cycles in a combined cycle test.10 Furthermore, this technology offers a variety of color options and can reduce the seizure of stainless steel fasteners and mitigate galvanic corrosion issues in contact with aluminum and highly corrosion-resistant electroplated steel.10
Trivalent chromium plating: As an alternative to traditional hexavalent chromium plating, trivalent chromium plating significantly reduces toxicity and is more environmentally friendly. Research has shown that through optimized process formulations and the addition of nanomaterials, trivalent chromium hard chrome plating can achieve hardness exceeding HV900, coating thicknesses up to 100μm, and excellent adhesion to the base metal.4 The optimized trivalent chromium coating significantly enhances corrosion resistance, with coatings of 40-50μm thickness capable of passing salt spray tests exceeding 120 hours.
High-Performance Stainless Steel Substrates: Another development direction is to use higher-grade stainless steels as the substrate for honed tubes, leveraging the inherent corrosion resistance of the material to reduce the need for surface treatment. For example, super-austenitic and duplex stainless steels offer higher corrosion resistance than 13CR, particularly in environments containing chloride ions and H₂S.
Welded large-diameter austenitic chromium-nickel alloy steel pipes covered by the ASTM A409/A409M standard are a prime example of materials suitable for corrosive or high-temperature applications.
Anti-Corrosion Chrome Honed Tube, a key industrial material, achieves a balance of exceptional dimensional accuracy, superior surface quality, and outstanding corrosion resistance through a combination of honing and chrome plating. This type of tubing plays an irreplaceable role in hydraulic systems, aerospace, offshore engineering, oil and gas, and high-temperature and high-pressure equipment, significantly contributing to improved equipment reliability, extended service life, and reduced maintenance costs.
While traditional chrome plating technology faces environmental and health challenges, the development of new technologies such as trivalent chromium plating, chrome-free coatings, and high-performance stainless steels is driving this field towards a more environmentally friendly and sustainable approach. These technologies significantly reduce the environmental impact of production and use while maintaining or even improving performance.
In the future, with the continuous advancement of industrial technology, we can expect continued innovation in material properties, manufacturing processes, and functional integration for corrosion-resistant chrome-plated honing tubes. The application of nanotechnology, the integration of intelligent functions, and the development of customized solutions will further expand the application areas and performance boundaries of this material.
