1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

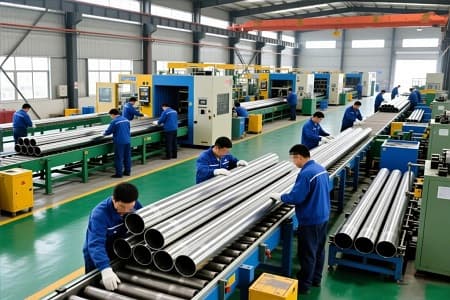

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.

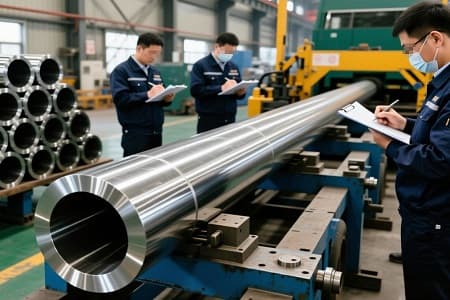

3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

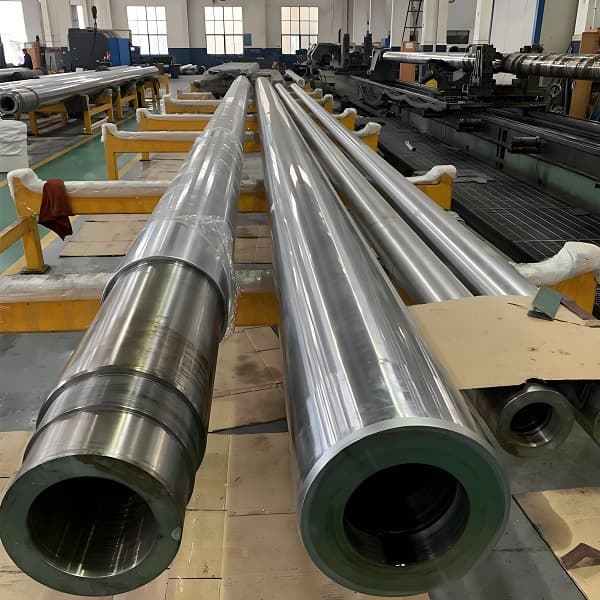

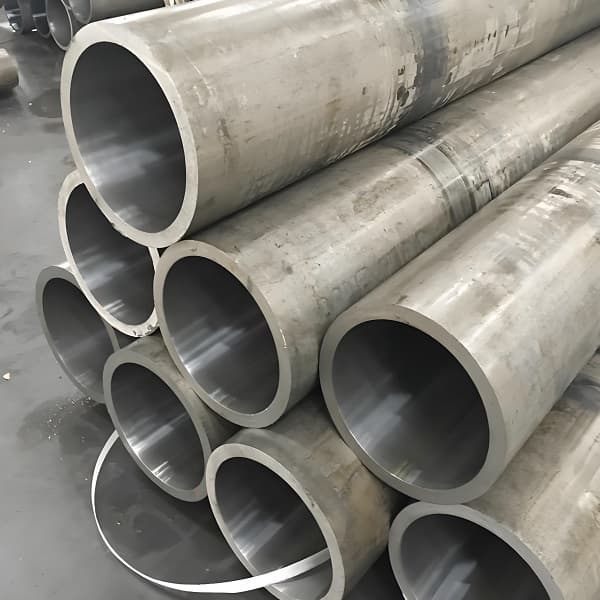

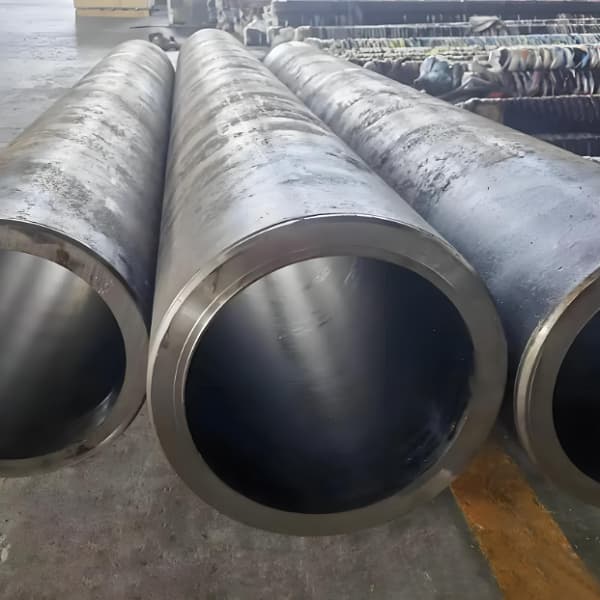

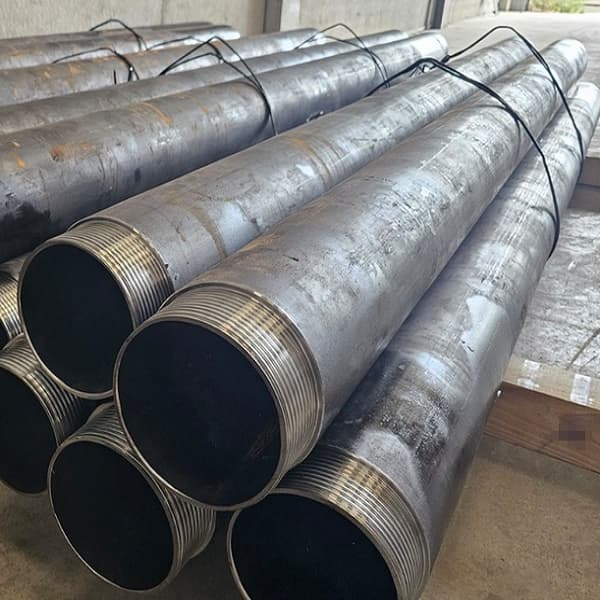

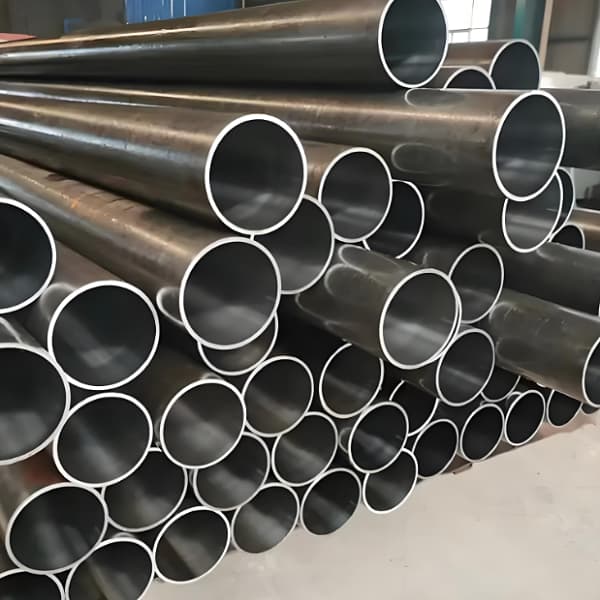

In modern industry, hard chrome plated honed tube is a key component widely used in hydraulic systems, construction machinery, and heavy equipment. It combines a high-strength base material with hard chrome plating technology. Through a precision honing process, it exhibits exceptional wear resistance, high precision, and long service life.

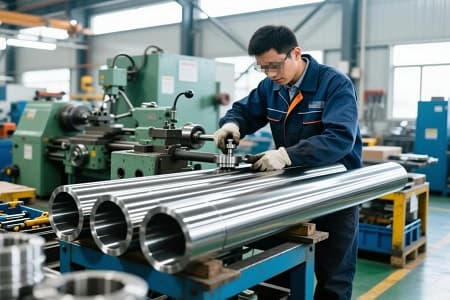

Hard Chrome Plated Honed Tube uses a high-quality carbon steel or alloy steel base tube, which is hard chrome plated and then honed. The hard chrome plating process deposits a thick chrome layer, typically over 20μm, on various substrates. This layer utilizes the properties of chromium to enhance the component’s hardness, wear resistance, temperature resistance, and corrosion resistance. The base tube is typically made of high-strength steel, providing excellent mechanical strength and toughness. The chrome plating not only imparts a high gloss to the tube but, more importantly, significantly improves its surface hardness (typically reaching HV800-900 or higher) and wear resistance.
The final honing process ensures the tube’s inner wall achieves exceptional dimensional accuracy, roundness, and surface finish. This smooth surface reduces friction, facilitating seal installation and reducing equipment resistance. While hard chrome plating can pose significant environmental risks, its high hardness, wear resistance, corrosion resistance, and long-lasting surface finish are also relatively simple and cost-effective, making it a long-standing and widely used method.
Hard Chrome Plated Honed Tube offers several notable features that make it an excellent choice for hydraulic and pneumatic systems:
Excellent Wear Resistance: The hard chrome plating layer provides excellent wear resistance, ensuring the tube maintains excellent working condition under frequent friction and significantly extending its service life.
Excellent Corrosion Resistance: The hard chrome plating layer effectively resists corrosion, ensuring the tube can withstand long-term use in humid or corrosive environments without failure, making it suitable for a wide range of industrial applications.
Smooth Inner Surface: The finely machined inner surface creates an exceptionally smooth surface, reducing fluid flow resistance and improving the efficiency of hydraulic and pneumatic systems.
High Strength: Hard chrome-plated tubing is typically made from high-strength alloy steel, capable of withstanding high pressures and temperatures, suitable for a variety of demanding operating conditions.
Economical: While the initial investment is higher, the long-term durability and low maintenance costs make hard chrome-plated finished tubing highly economical.
Due to its excellent performance, hard chrome-plated honed tubing is widely used in many industries:
Hydraulic and pneumatic systems: This is a classic application area, often used in the manufacture of cylinder barrels for hydraulic and pneumatic cylinders, providing precise guidance and sealing. Its precise internal surface provides an optimal interface for piston seals, ensuring smooth operation and zero leakage even under high pressure.
Construction Machinery: Widely used in the hydraulic systems and actuators of equipment such as excavators, loaders, and cranes, they withstand heavy loads and frequent reciprocating motion.
Automotive Industry: Used in critical areas such as shock absorbers, braking systems, and steering systems in automobiles, ensuring vehicle safety and reliability.
Mining and Metallurgical Equipment: They are used in conveying pipes, hydraulic supports, and other applications within mining machinery and metallurgical equipment to withstand wear and impact under harsh operating conditions.
Injection Molding Machines and Presses: They serve as power actuators, ensuring high precision and long-term stable operation.
When selecting the appropriate Hard Chrome Plated Honed Tube, consider the following:
Dimensions: These include diameter, wall thickness, and length, which should be determined based on the design pressure, installation space, and load conditions. Tube wall thicknesses range widely and can be customized to meet user requirements.
Coating Quality: Determine the thickness of the chrome plating (usually tens to hundreds of microns), as well as its hardness and bonding strength. The wear resistance of the hard chrome plating is closely related to its hardness; generally, the higher the hardness, the better the wear resistance.

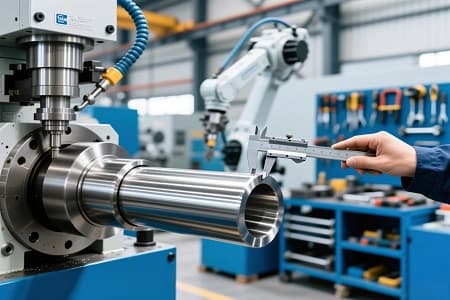

Surface Finishing Quality: Focus on the surface roughness, dimensional tolerance, and straightness after honing, as these directly impact sealing effectiveness and motion accuracy.
Environmental Compatibility: When operating in high-temperature or corrosive environments, confirm the suitability of the tubing material. The hardness of the hard chrome plating layer decreases with increasing temperature.
During installation and use, avoid bumps and scratches on the delicate inner surface; keep the system media clean to prevent abrasive wear; and verify the suitability of the tubing when operating in special environments.
With the continuous advancement of industrial technology, the performance requirements for hard chrome plated honed tubes are also increasing. The manufacturing industry is moving towards higher precision, higher efficiency, and longer life, driving technological innovation in this type of tubing.
However, electroplating hard chrome can pose serious environmental risks. The chromic acid solution used in the chrome plating process produces chromic acid mist and wastewater. Furthermore, traditional hard chrome plating processes have several drawbacks: lower hardness than some ceramic and cermet materials; microcracks in the chrome plating layer inevitably lead to through-hole cracks; and the slow deposition rate of the electroplating process is not conducive to the application of thick coatings.
Therefore, research continues to strive to find new alternatives to electroplating hard chrome, and many new processes have emerged and are being applied and developed. Environmental protection and sustainable development will become key industry trends in the future, and the development of new surface treatment technologies will continue to advance.
Hard Chrome Plated Honed Tube, a high-performance industrial tube, combines the mechanical properties of a high-strength base with the surface characteristics of a hard chrome plating layer through precision honing. It provides a reliable, durable, and efficient solution for modern industrial equipment, and is particularly indispensable in applications requiring high precision, long life, and low maintenance costs.
