1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

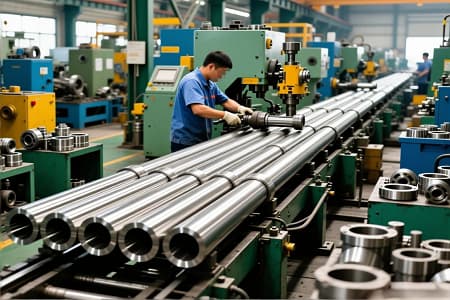

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

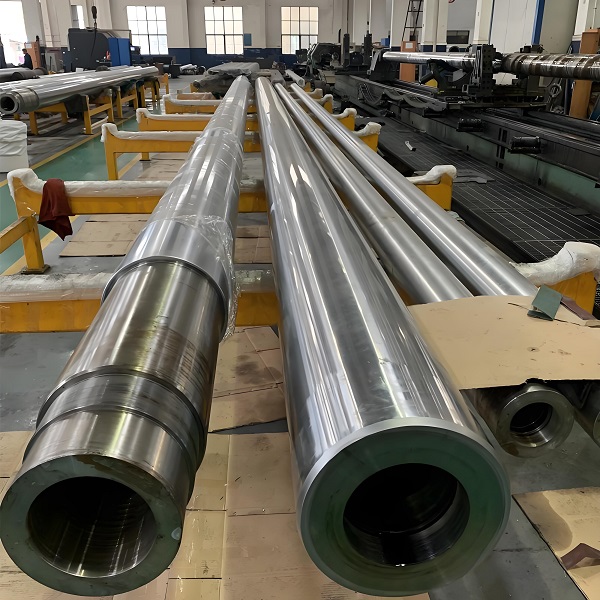

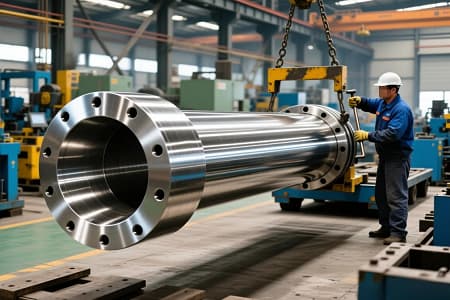

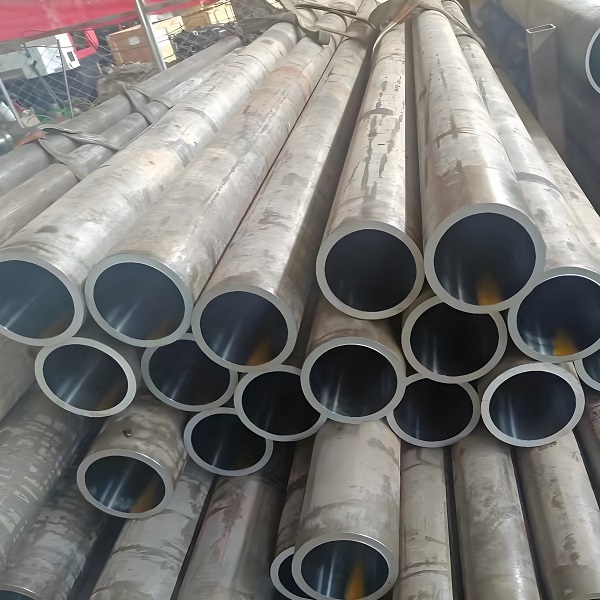

Hydraulic Cylinder Chrome Plated Honed Tube is a high-precision steel tube designed specifically for hydraulic systems. Its inner wall is honed and the outer wall is hard chrome-plated, combining high precision, wear resistance and corrosion resistance.
The core advantage of the Hydraulic Cylinder Chrome Plated Honed Tube lies in its excellent durability and reliability. Its surface hard chrome plating provides exceptional wear and corrosion resistance, greatly extending the service life of the hydraulic cylinder in harsh working conditions.
In modern industry and machinery manufacturing, the efficiency and reliability of hydraulic systems are crucial. As a core component of hydraulic systems, Hydraulic Cylinder Chrome Plated Honed Tube (Hydraulic Cylinder Chrome Plated Honed Tube) performs critical functions.
Hydraulic Cylinder Chrome Plated Honed Tube is highly sought after due to its unique material properties and processing advantages. This type of tubing is typically made from high-quality carbon steel or alloy steel, such as ST52.3, E355, SAE 1020, or SAE 1026. It is cold-drawn into seamless tubes or hollow bars, ensuring a uniform microstructure and excellent mechanical properties.
Chromium plating involves depositing a hard chrome coating on the outer or inner surface of the tubing, significantly enhancing its performance. The hard chrome coating typically has an extremely high hardness, reaching up to HV1100 (approximately HRC 65), providing excellent wear resistance. Chrome plating also offers a low coefficient of friction, reducing motion resistance and improving system efficiency. The plating thickness can be adjusted based on application requirements. An economical thickness of 1.5 mm (0.015 mm) per side is typical, but higher thicknesses can be achieved upon request.
The honing process creates precise geometric dimensions and a specific surface texture on the inner surface of the tube. Through honing, the inner surface of the tube can achieve an extremely low roughness (typically Ra < 0.4 μm), even reaching Ra < 0.2 μm. This ultra-smooth surface reduces seal wear, improves sealing performance, and reduces friction losses.
The manufacturing process for Hydraulic Cylinder Chrome Plated Honed Tube is relatively complex and primarily involves the following steps:
Material Selection: The first step in manufacturing hydraulic cylinder chrome plated honed tubes is selecting high-quality alloy steel, typically containing elements such as chromium and nickel to ensure the tube’s strength and durability.
Heat Treatment: Heat treatment processes (such as quenching and tempering) improve the material’s internal structure, enhancing its hardness and toughness and ensuring stability under high-pressure environments.
Extrusion and Rolling: Alloy steel is processed into the desired tube shape using extrusion or rolling techniques, ensuring accurate outer diameter and wall thickness.
Finishing: Grinding and polishing techniques are used to ensure a high-quality finish on both the inner and outer surfaces of the tube, meeting the stringent requirements of hydraulic systems.
Chromium Plating: A thin layer of chromium is applied to the tube surface through an electroplating process, enhancing its wear and corrosion resistance.

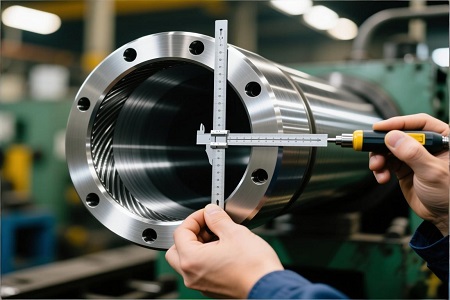

Quality Inspection: Each tube undergoes rigorous inspection before shipment, including dimensional measurements, mechanical property testing (such as tensile strength and yield strength), and corrosion testing to ensure compliance with industry standards.
Hydraulic Cylinder Chrome Plated Honed Tube is widely used in various industrial and mobile equipment. This critical component can be found in construction machinery, metallurgical equipment, hydraulic presses, hydraulic gate hoists, aerospace, and the nuclear power industry. Different application areas place varying emphasis on the performance requirements for chrome-plated honed hydraulic cylinder tubes. For example, the piston rods of hydraulic gate hoists used in water conservancy projects must withstand not only frequent friction but also corrosion from various humid and polluted environments. Consequently, they place relatively high demands on corrosion resistance, wear resistance, and routine maintenance. Heavy equipment in steel and cement plants, on the other hand, must withstand extremely high pressures (up to 40 MPa) and frequent impact loads.
To address these demanding applications, the development of chrome-plated honed hydraulic cylinder tubes continues to innovate. In addition to traditional chrome plating, alternatives such as ceramic coating have emerged. Ceramic coating utilizes high-temperature plasma arc spraying to apply ceramic powder to the substrate surface, creating a dense protective layer with enhanced corrosion and wear resistance, making it suitable for use in extremely harsh operating conditions.
With the advancement of industrial technology and increasing environmental protection requirements, the technology for chrome-plated honed hydraulic cylinder tubes is also undergoing continuous innovation. While the traditional electroplating chrome process is mature and reliable, it carries environmental risks. Chromium-containing wastewater and exhaust gases are classified as Class I controlled emissions by the government, posing significant risks to the environment and production workers. This has prompted the industry to seek more environmentally friendly alternative technologies, such as ceramic spray coating.
On the other hand, the integration of intelligent detection technologies is also becoming a trend. New intelligent hydraulic cylinder chrome-plated honing tubes integrate the stroke detection device into the piston rod. Through the combination of a magnetic substrate and a non-magnetic coating, high-precision displacement detection is achieved, with an accuracy of up to 1mm. This innovative design reduces the need for external sensors and improves system reliability and accuracy.
Advances in materials science have also made it possible to enhance the performance of hydraulic cylinder chrome-plated honing tubes. New materials, such as UGICHROM® 4028, combine the advantages of micro-cracked chrome plating technology and high-performance stainless steel to achieve low friction, high wear resistance, enhanced corrosion resistance, and excellent mechanical properties.
Hydraulic cylinder chrome-plated honing tubes have become an indispensable material in modern hydraulic systems due to their excellent performance and broad application prospects. With the continuous advancement of technology and the diversification of market demands, this field will usher in more innovation and development, providing better solutions for all walks of life.
