1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.
2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

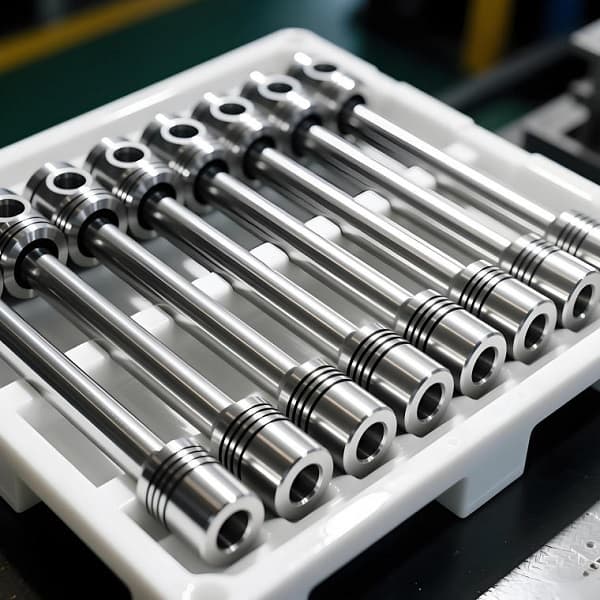

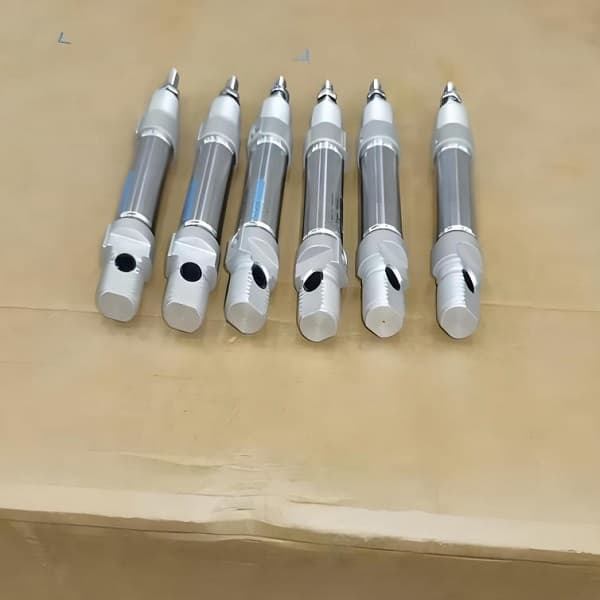

As a specialized manufacturer of high-performance hydraulic and pneumatic components, we present our ISO 6432 Miniature Air Cylinder Piston Rods—engineered to meet the stringent demands of compact automation systems where precision, reliability, and space efficiency are critical. These piston rods are meticulously designed to comply with ISO 6432 international standards, ensuring seamless integration with miniature pneumatic cylinders while delivering exceptional performance in confined spaces. Unlike generic piston rods, our products combine advanced material science with precision machining to optimize motion control, reduce friction, and extend service life in high-cycle applications.
Our ISO 6432 Miniature Piston Rods are indispensable across industries requiring compact, high-precision linear motion solutions:
Industrial Automation: Ideal for robotic arms, pick-and-place systems, and precision actuators in assembly lines, where space constraints and repetitive accuracy are paramount.
Medical Devices: Used in diagnostic equipment, automated surgical tools, and laboratory automation systems requiring hygienic, corrosion-resistant components.
Electronics Manufacturing: Employed in PCB handling machines, semiconductor fabrication equipment, and ESD-safe environments to ensure electrostatic protection.
Packaging Machinery: Integrated into compact pneumatic valves and actuators for lightweight, high-speed packaging operations.
Automotive Systems: Applied in sensor actuation, brake control systems, and transmission mechanisms where miniaturization and reliability are critical.
Compact Design: Optimized for miniature cylinders (bore sizes: 12–25 mm), reducing spatial footprint while maintaining high force output (e.g., up to 309 N for double-acting models).
Precision Engineering: Machined to tight tolerances (e.g., ISO f7) with surface roughness as low as Ra ≤ 0.2 μm, ensuring smooth operation and minimal friction.
Corrosion Resistance: Crafted from stainless steel or hard chrome-plated steel for durability in humid, corrosive, or chemically aggressive environments.
Energy Efficiency: Low-friction surfaces reduce air consumption, lowering operational costs and enhancing sustainability.
Standard Compliance: Full adherence to ISO 6432 guarantees interoperability with global pneumatic system designs.
Manufacturing Expertise: With decades of experience in producing precision piston rods and chrome-plated bars, we ensure rigorous quality control from raw material selection to final finishing, backed by ISO 9001 certification.
Customization Capabilities: We offer tailored solutions for dimensions, materials, and surface treatments (e.g., ESD-safe coatings, custom threading) to meet unique application needs.
Global Supply Chain: Our products comply with international standards (e.g., ISO, ATEX), and we provide seamless logistics support for worldwide clients.
Technical Support: Our engineering team delivers end-to-end assistance, from design optimization to after-sales service, ensuring optimal integration and performance.
Bore Sizes: 12 mm, 16 mm, 20 mm, 25 mm (ISO 6432 standard range).
Stroke Lengths: Up to 500 mm (customizable based on application requirements).
Operating Pressure: 1.5–10 bar (pneumatic systems).
Temperature Range: -20°C to +80°C (extended ranges available for high-temperature applications).
Materials: Stainless steel (e.g., 316/440C), hard chrome-plated steel.
Surface Finish: Hard chrome plating (20–30 μm thickness) or polished stainless steel for low friction.
Port Connections: M5 to G 1/8 threads for seamless integration.
Stainless Steel Rods: For corrosive environments (e.g., medical, food processing) with excellent chemical resistance.
Hard Chrome-Plated Rods: General industrial use with enhanced wear resistance and durability.
ESD-Safe Rods: Engineered for electronics manufacturing to prevent electrostatic discharge.
Hollow Rods: Lightweight design for applications requiring internal wiring or fluid passage.
Custom-Threaded Rods: Tailored with metric (e.g., M6, M8) or imperial threads for specific mounting needs.
Q: What does ISO 6432 compliance mean for miniature piston rods?
A: ISO 6432 ensures standardized dimensions, port sizes, and performance metrics, guaranteeing global interoperability with miniature pneumatic cylinders and reducing compatibility issues.
Q: Can these rods withstand high-cycle applications?
A: Yes, our rods are engineered for high-cycle durability (e.g., tested for 50,000+ cycles without failure) due to precision machining and robust materials.
Q: Are custom lengths and coatings available?
A: Absolutely. We offer customized lengths (up to 500 mm), surface coatings (e.g., DLC, ESD-safe), and material grades to meet specific operational needs.
Q: How do these rods perform in high-humidity environments?
A: Stainless steel variants provide exceptional corrosion resistance, making them suitable for humid or washdown environments (e.g., food processing, pharmaceuticals).
Q: Do you provide certifications and testing reports?
A: Yes, we supply ISO 9001 certifications, material test reports, and performance data (e.g., load capacity, corrosion resistance) upon request.
Elevate your compact automation systems with our ISO 6432 Miniature Air Cylinder Piston Rods, where precision engineering meets unwavering reliability. Contact us today to discuss your requirements, request a customized quote, or explore our full product range. Let our expertise in miniature motion solutions become your competitive advantage in achieving efficiency and innovation.
