1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

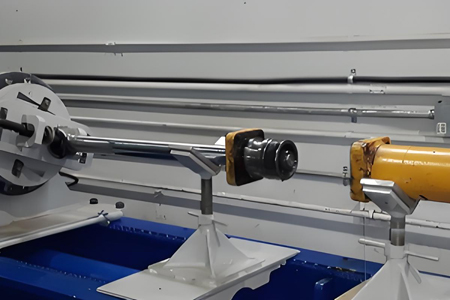

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.
In many fields such as industrial automation and construction machinery, hydraulic systems play the role of "muscle systems", and double acting piston hydraulic cylinders are undoubtedly the most powerful and reliable "arms" in this system. It has become an indispensable key component in modern power transmission due to its unique bidirectional driving capability and outstanding performance.
The reason why double acting piston hydraulic cylinders have become the preferred choice for many applications is due to their several core advantages:
Bidirectional controllable output: Unlike single acting hydraulic cylinders that rely on springs or self weight reset, double acting cylinders can provide strong and controllable thrust or tension in both directions of piston movement (extension and retraction), achieving fully active reciprocating motion.
High power density: With a compact structural size, it can output tremendous force, which is unmatched by electric actuators.
Smooth movement and precise control: By using control components such as throttle valves and proportional valves, the flow rate and pressure of hydraulic oil can be accurately adjusted, thereby achieving precise control of piston rod speed, stepless speed regulation, and output force.
High reliability and long lifespan: The structure is sturdy, and the main moving parts (such as piston seals and rod seals) are designed maturely. With proper use and maintenance, the lifespan is extremely long.
Good overload protection: The system pressure is set by an overflow valve. When the load is too high, the pressure reaches the set value and overflows, avoiding mechanical damage to the components.
Double acting piston hydraulic cylinder is an actuator that uses hydraulic oil to alternately enter and exit on both sides of the piston, thereby driving the piston rod to achieve bidirectional (extension and retraction) linear motion.
The design of the double acting hydraulic cylinder is highly flexible and can be customized and adjusted according to different working conditions, demonstrating excellent adaptability:
Coping with different loads: By changing the cylinder diameter and system pressure, hydraulic cylinders with output forces ranging from a few tons to thousands of tons can be easily designed.
Adapt to different speeds: By optimizing the internal structure and sealing form, it can meet the needs of high-speed frequent movements and also adapt to stable propulsion under low-speed heavy loads.

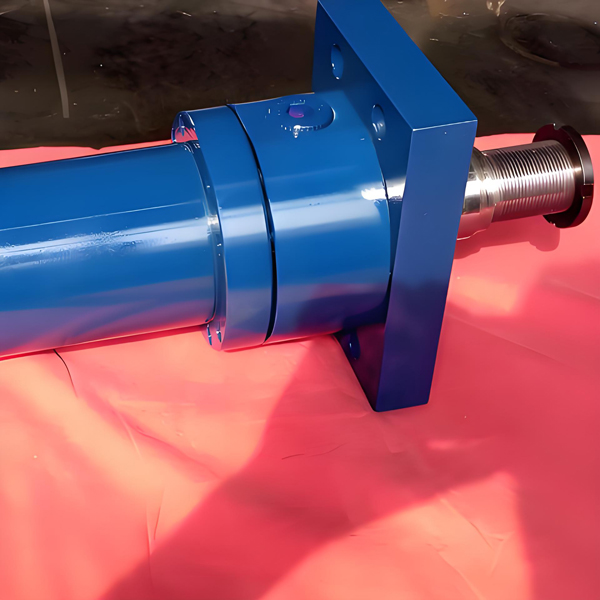

Diversified installation methods: We offer a variety of installation methods such as earring, flange, footrest, and pin shaft, making it easy to integrate into various mechanical equipment.
Resistant to harsh environments: Special surface treatments (such as hard chrome plating on piston rods), sealing materials (high temperature and corrosion resistance), and protective designs (dust rings) can be used to adapt to harsh industrial environments such as high temperature, high humidity, high dust, and corrosion.
Its working principle is based on Pascal’s law, and the core is to drive the reciprocating motion of the piston by controlling the flow direction of hydraulic oil.
Extension process:
Pressure oil enters the rod chamber from the rod chamber oil port.
At the same time, the oil port of the rodless chamber is connected to the return oil circuit.
Under the pressure difference on both sides, the piston moves towards the rod chamber direction, and the piston rod retracts.
Attention: Due to the smaller effective area of the rod cavity compared to the rodless cavity, under the same oil pressure, the retraction force is smaller than the extension force, but the retraction speed is faster.
Summary rule: The piston moves towards the other side as the pressure oil enters.
Construction machinery: boom and boom of excavators and loaders; The lifting and lowering of the bulldozer blade; The legs and boom of a car crane.
Industrial equipment: mold clamping and injection mechanism of injection molding machines; The slider of the stamping machine; The feed system of the machine tool; The pressing device of metallurgical rolling equipment.
Aerospace: retraction and extension of aircraft landing gear; Control of the rudder surface.
Agricultural machinery: lifting and lowering of tractors and plows; Control of the harvester.
Ship ocean: steering gear; Opening and closing of the hatch cover; The lifting mechanism of the drilling platform.
Need for bidirectional active control: When precise force and speed control are required for both extension and retraction of the work cycle, a double acting cylinder is the only option.
High requirements for output force: In situations where huge thrust is needed, hydraulic transmission has a natural advantage.
Space limitation: High power output is required in a compact space, and the high power density of hydraulic cylinders is crucial.
Harsh working conditions: In harsh environments such as impact, vibration, high and low temperatures, hydraulic cylinders are more robust than electric actuators.
Existing hydraulic system: If the host equipment already has a hydraulic pump station, using hydraulic cylinders is the most economical and efficient solution to achieve system integration.
With the development of Industry 4.0 and intelligent manufacturing, double acting piston hydraulic cylinders are also constantly evolving, and the future trends are mainly reflected in:
Intelligence and integration: Integrated displacement and pressure sensors, built-in electronic control unit, achieve state monitoring, fault diagnosis, and predictive maintenance, becoming an “intelligent hydraulic cylinder”.
Energy saving and efficiency: Develop efficient driving solutions that combine variable frequency motors, variable displacement pumps, etc. to reduce energy consumption. Adopting low friction sealing technology to reduce internal friction and improve efficiency.
New materials and new processes: using composite materials and lightweight alloys to reduce weight; Adopting more wear-resistant and durable surface treatment techniques and sealing materials to extend the service life.
Compact and modular: Design more compact structures, provide modular products, shorten customer design and assembly cycles, and achieve rapid deployment.
Environmentally friendly: Develop a biodegradable hydraulic oil compatible sealing system to reduce the impact of leaks on the environment.
In summary, the double acting piston hydraulic cylinder, with its powerful bidirectional driving capability, excellent reliability, and unparalleled adaptability, will be the cornerstone technology in the industrial transmission field in the past, present, and foreseeable future. It is not only a symbol of power, but also a manifestation of control and wisdom, continuously promoting the development of various industries towards higher efficiency and intelligence.
