1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.
2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

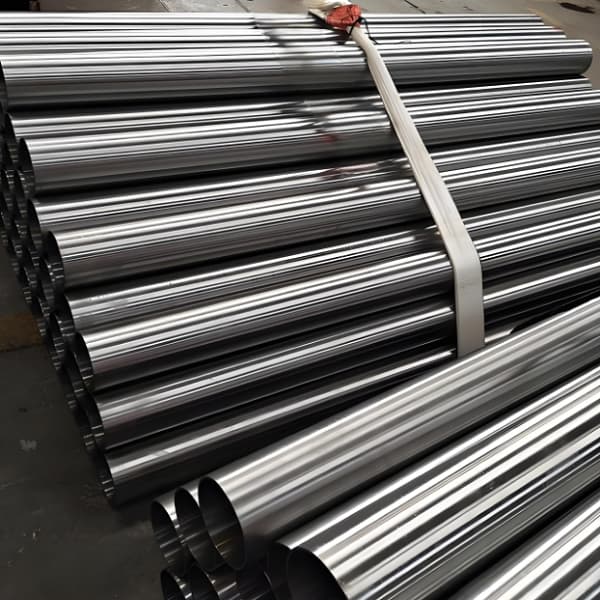

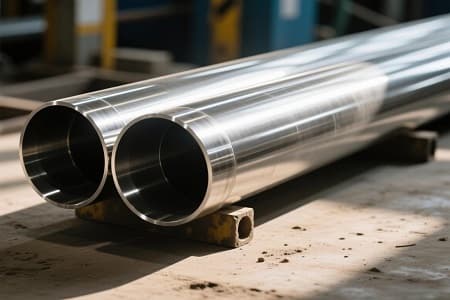

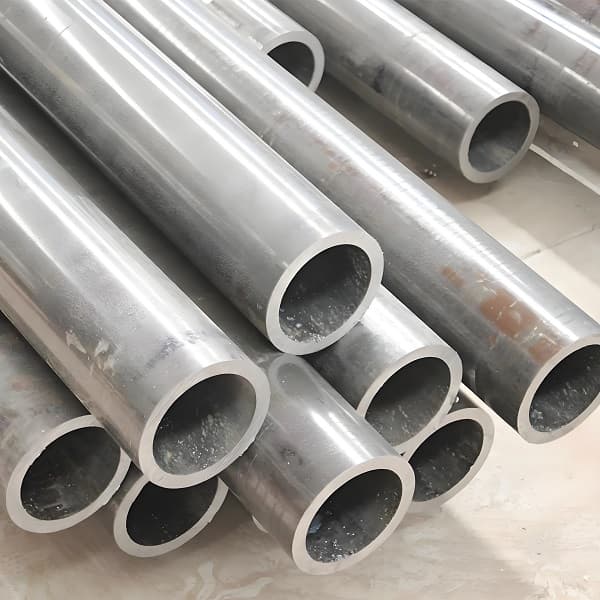

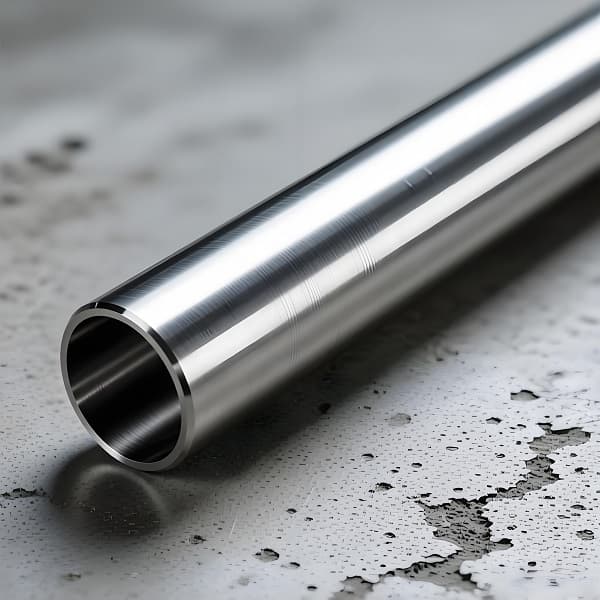

In modern industrial applications, the quality and performance of tubing directly impact the efficiency and safety of equipment. Seamless Chrome Plated Honed Tube (seamless chrome-plated honed tube) has become the material of choice across numerous industries due to its superior performance and wide applicability.
Seamless Chrome Plated Honed Tube incorporates the advantages of multiple precision manufacturing technologies. Its outer diameter accuracy can reach f8, with a surface roughness ranging from Ra 0.2μm to Ra 0.4μm.
The hard chrome coating thickness is typically 20 microns ±10%, with a surface hardness exceeding HV 850 (minimum). This hard chrome layer significantly enhances the tube’s wear and corrosion resistance.

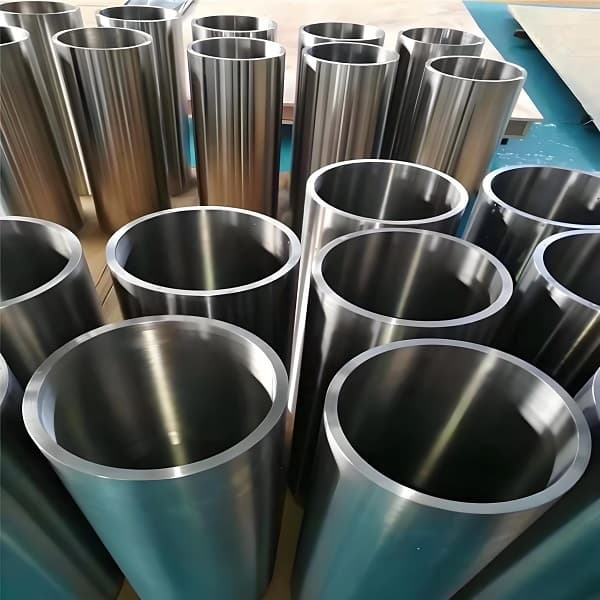

Inner bore accuracy, a key quality indicator for honed tubes, typically reaches grades H7, H8, or H9, with an inner surface roughness ranging from Ra 0.2μm to Ra 0.8μm. These precise specifications ensure efficient sealing and smooth operation of the hydraulic system.

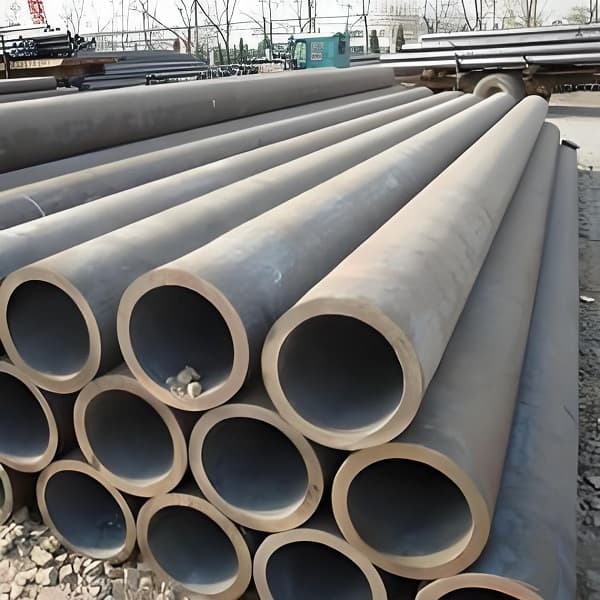

Special lengths up to 13 meters are available, typically made from JIS STKM13C or carbon steel pipe for mechanical construction. Custom specifications can also be produced.
The manufacturing process for seamless chrome-plated honed tube is relatively complex and primarily involves the following steps:
Raw Material Selection: The first step in manufacturing seamless chrome-plated honed tube is to select high-quality alloy steel, ensuring its chemical composition meets industry standards.
Heat Treatment: Through heat treatment processes such as quenching and tempering, the material’s internal structure is improved, enhancing the tube’s hardness and toughness, ensuring stability under high-pressure environments.
Extrusion: The alloy steel is formed into the desired tube shape using extrusion or rolling techniques, ensuring accurate outer diameter and wall thickness, laying the foundation for subsequent processing.

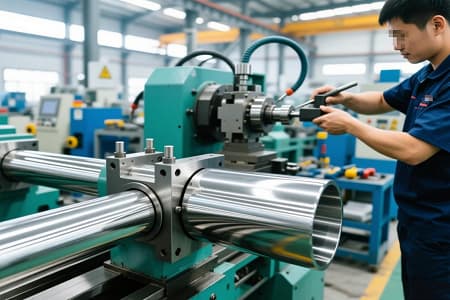

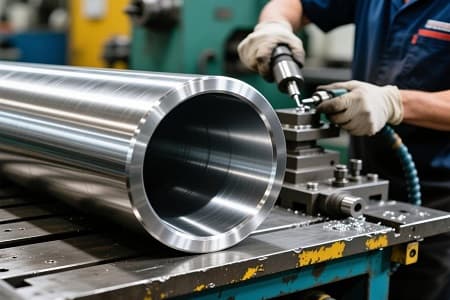

Finishing: Grinding and polishing techniques are used to ensure a high-quality finish on both the inner and outer surfaces of the tube, meeting the stringent requirements of hydraulic and pneumatic systems.
Chrome Plating: A thin layer of chrome is applied to the tube surface through an electroplating process, enhancing its wear and corrosion resistance.
Quality Inspection: Each tube undergoes rigorous inspection before shipment, including dimensional measurements, mechanical property testing, and corrosion testing, to ensure compliance with industry standards.
Seamless Chrome Plated Honed Tube offers several outstanding performance advantages:
Extremely High Dimensional Stability: The seamless base structure ensures consistent mechanical properties and dimensional stability along the entire length of the tube, reducing deformation caused by stress or temperature changes.
Excellent Tribological Properties: The internal surface created by honing features a special cross-grained structure that helps retain lubricant, reducing friction and wear on moving parts and extending system life.
Excellent Corrosion Resistance: The hard chrome plating provides excellent corrosion protection, enabling the tube to withstand a variety of harsh operating environments, including exposure to moisture, chemicals, and extreme temperatures.
Reduced Maintenance: Due to its wear and corrosion resistance, hydraulic systems using this tubing require less maintenance, lowering overall operating costs.
Extended System Life: The precision-machined internal surface reduces seal wear, significantly extending the service life of the hydraulic cylinder and the entire hydraulic system.
Seamless Chrome Plated Honed Tube is widely used in various industrial sectors:
In the construction machinery industry, this tubing is a key material for hydraulic cylinders used in heavy equipment such as excavators, loaders, and cranes. These devices rely on high-performance hydraulic systems to perform various functions and tasks.
This tubing is also widely used in the automotive industry, particularly in power steering, braking, and suspension systems. Automotive hydraulic tubing requires extremely high machining precision to meet the stringent space and performance requirements within vehicles.
Industrial automation equipment widely uses seamless chrome-plated honed tubing for pneumatic and hydraulic actuators. These applications demand high precision, long life, and reliability.
This tubing also plays an important role in aerospace, shipbuilding, and precision machinery. They are used in a variety of precision actuators, providing reliable power transmission and control solutions for modern industry.

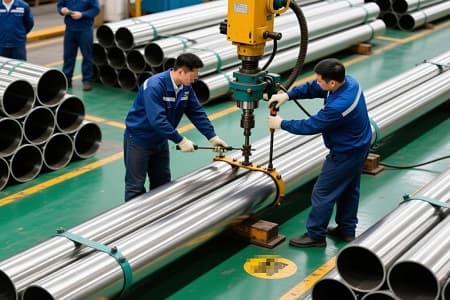

The production of seamless chrome-plated honed tubes adheres to stringent quality standards and specifications. Numerous inspections are conducted during the production process, including form and position inspection, flaw detection, chemical analysis, and metallographic microanalysis.
Industry standards such as ASTM, API, CE, and ISO9001 ensure the quality and reliability of honed tubes. These standards set clear requirements for the chemical composition, mechanical properties, dimensional accuracy, and surface quality of the tubes.

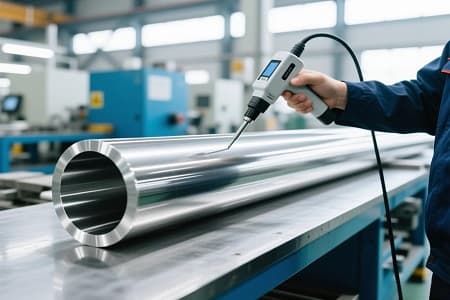

Precision measurement technology is crucial in the honing process, and manufacturers typically use endoscopic inspection and form and dimensional inspection to ensure product quality. Only products that pass all these rigorous inspections are considered qualified seamless chrome-plated honed tubes.
For specific applications, such as automotive or aerospace, additional industry standards and safety regulations must be met to ensure reliable operation under extreme conditions.
With technological advancements and changing industrial demands, the development trends of seamless chrome-plated honed tube will be reflected in the following areas:
R&D of High-Performance Materials: We will continue to research and develop higher-performance alloy materials to meet more demanding operating environments and application requirements, ensuring efficient and stable systems.
Application of Intelligent Manufacturing Technologies: The introduction of intelligent manufacturing technologies to improve production efficiency and pipe quality control will become a key direction for industry development.
Environmental Protection and Sustainable Development: During production, companies will increasingly prioritize environmental protection, adopting cleaner production processes and material recycling mechanisms to meet sustainable development requirements.
Demand for Customized Products: With the diversification of the market, customer demand for customized seamless chrome-plated finished tubes is increasing, requiring manufacturers to flexibly adjust their production strategies to meet this demand.
Seamless chrome-plated honed tube has become an indispensable material in modern industry due to its superior performance and broad application prospects. With continuous technological advancements and diversifying market demands, this field will usher in more innovation and development, providing higher-quality solutions for various industries. Whether in the hydraulic, pneumatic or mechanical manufacturing industries, seamless chrome-plated precision-processed tubes will continue to play a key role in contributing to the sustainable development of the industry.
