In modern machinery and engineering, the flexibility and efficiency of hydraulic systems are key factors. Telescopic Cylinder Honed Tubes (telescopic cylinder precision-machined tubes) are essential components in a wide range of applications due to their unique design and functionality.

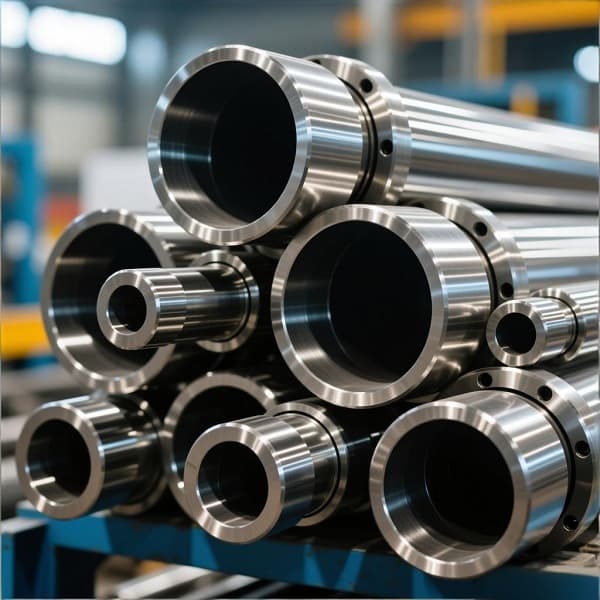

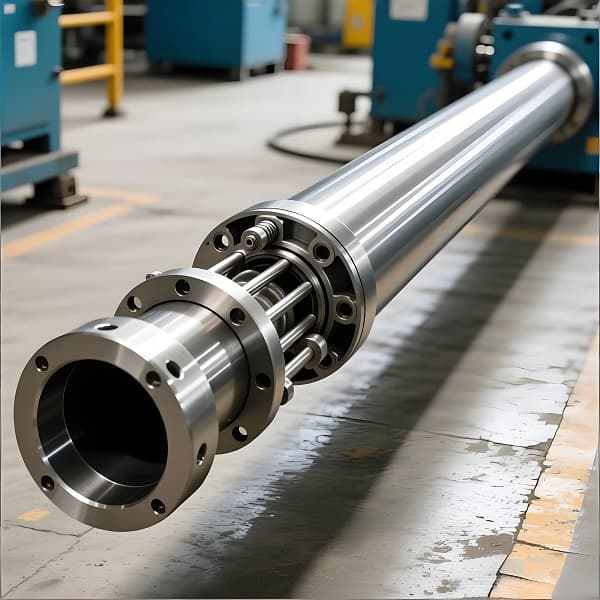

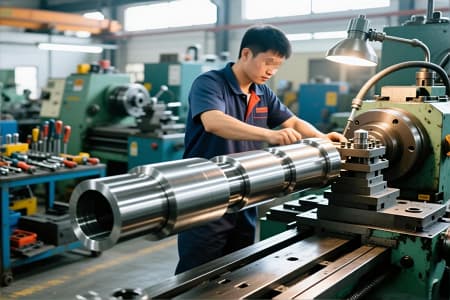

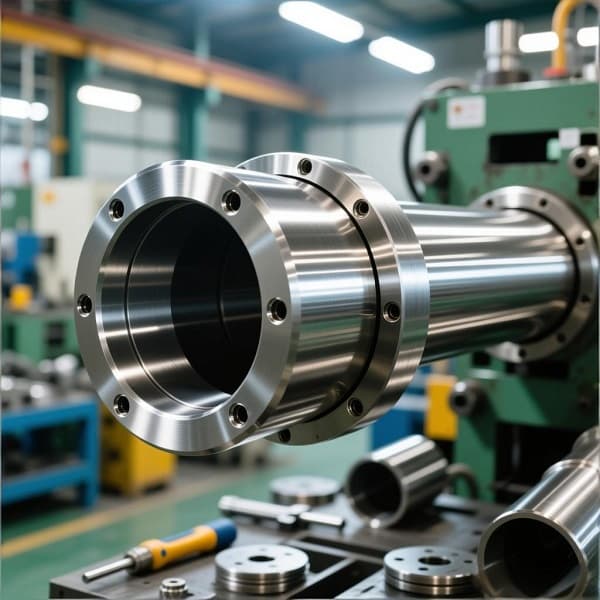

Telescopic Cylinder Honed Tubes utilize a multi-layer, concentric metal sleeve design. Precision machining allows each stage to slide axially, enabling cylinder length adjustment. This innovative design minimizes the cylinder’s footprint when fully retracted, while enabling a travel range far exceeding that of conventional single-stage hydraulic cylinders when fully extended. Each stage of the Telescopic Cylinder Honed Tube is precision-honed to an extremely low internal surface roughness (typically less than Ra0.4µm), ensuring optimal seal fit and smooth movement.

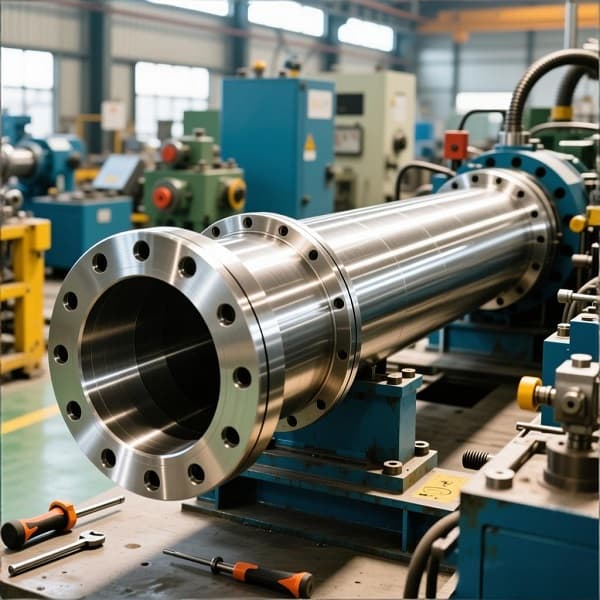

Each stage of the Telescopic Cylinder Honed Tube within the multi-layer sleeve construction requires precise dimensional control and geometric accuracy. Each tube stage is nested in descending diameters, with a minimum number of 2-5 layers, or even more. This design not only considers the independent function of each stage but also ensures perfect fit and load transfer between them. A precision honing process provides each stage with ideal surface properties, reducing interstage friction and improving overall efficiency and service life.
Raw Material Selection: The first step in manufacturing telescopic cylinder honed tubes is selecting high-quality alloy steel to ensure strength and durability.

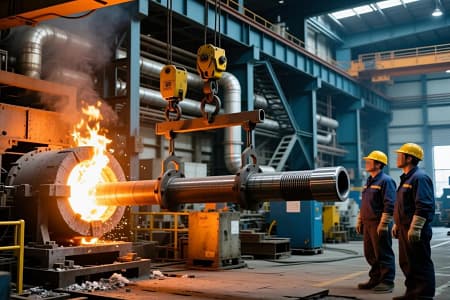

Heat Treatment: Through heat treatment processes such as quenching and tempering, the material’s internal structure is improved, enhancing the tube’s hardness and toughness, ensuring stability under high-pressure environments.

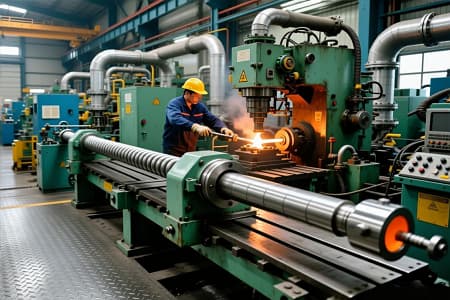

Forming: Extrusion or rolling techniques are used to form the alloy steel into the desired tube shape, ensuring accurate outer diameter and wall thickness, laying the foundation for subsequent processing.
Fine Machining: Grinding and polishing techniques are used to achieve a high-quality finish on both the inner and outer surfaces of the tube, ensuring smooth flow of hydraulic fluid and efficient system operation.
Inspection and Testing: Each tube undergoes rigorous quality inspections before shipment, including dimensional measurements, mechanical testing, and air-tightness testing, to ensure compliance with industry standards.

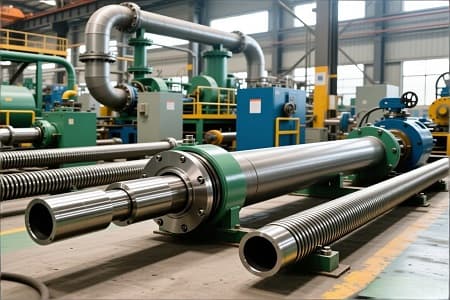

The Telescopic Cylinder Honed Tube offers numerous outstanding technical features and performance advantages. Its multi-layer, retractable design achieves a stroke range far exceeding that of traditional hydraulic cylinders while maintaining a compact footprint. This allows equipment designers to achieve a greater working range within limited space, improving mechanical design flexibility and efficiency.
The precision-honed inner surface of the Telescopic Cylinder Honed Tube achieves an extremely low roughness, which not only reduces the coefficient of friction (typically between 0.1 and 0.2) but also significantly improves sealing performance. This ultra-smooth surface creates an optimal fit with seals, significantly minimizing internal leakage and ensuring efficient operation of the hydraulic system. The uniform surface texture also effectively maintains an oil film, further reducing friction and wear.
Excellent wear resistance is another key advantage of the Telescopic Cylinder Honed Tube. The hard chrome treatment provides exceptional wear resistance, 5-8 times greater than that of ordinary carbon steel tubes, significantly extending the service life of hydraulic cylinders. This property enables telescopic cylinders to operate stably and long-term in harsh environments containing contaminants and abrasive particles, reducing maintenance costs and downtime.

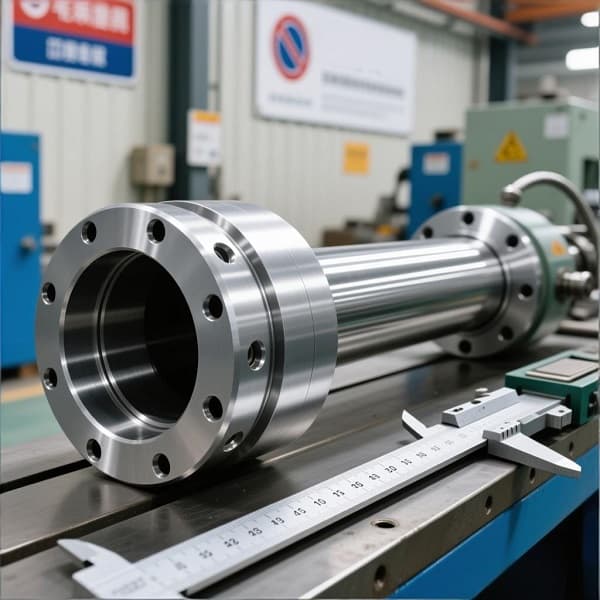

Telescopic cylinder honed tubes also offer high mechanical strength and precise dimensional stability. The base material’s tensile strength typically reaches 500-850 MPa or even higher, enabling them to withstand the immense stresses generated by hydraulic systems. Strict tolerance control ensures a perfect fit between the multi-stage sleeves, with outer diameter tolerances reaching ISO f7 or f8 grades, and strict guarantees for straightness, roundness, and wall thickness uniformity.
Telescopic cylinder honed tubes are widely used in various industrial and mobile equipment. In construction machinery such as dump trucks, cranes, excavators, and garbage compactors, telescopic cylinders provide the necessary long travel and compact storage solutions. They are also critical components in agricultural machinery, material handling equipment, and specialized vehicles.
Different application areas place varying emphasis on the performance requirements of telescopic cylinder honed tubes. For example, in lifting equipment, the tubes must withstand extremely high pressures and frequent impact loads; in mobile machinery, weight restrictions and space constraints must be considered. Telescopic cylinders in marine and offshore applications also require excellent corrosion resistance to withstand the erosion of saltwater environments.
Telescopic cylinder honed tubes are also crucial in hydraulic gate hoists, large industrial equipment, and aerospace. These applications often place extremely high demands on reliability, precision, and lifespan, requiring the telescopic cylinders to maintain stable performance under harsh conditions. For these applications, telescopic cylinder honed tubes utilize specialized designs and materials to meet performance demands under extreme conditions.
R&D of High-Performance Materials: Future research will focus on developing higher-performance alloys to meet the demands of more demanding operating environments and applications, ensuring the efficiency and stability of hydraulic systems.
Application of Intelligent Manufacturing Technologies: Introducing intelligent manufacturing technologies to improve production efficiency and pipe quality control will become a key direction for industry development.
Environmental Protection and Sustainable Development: During the production process, companies will increasingly prioritize environmental protection, adopting cleaner production processes and material recycling mechanisms to meet the requirements of sustainable development.
Demand for Customized Products: With the diversification of the market, customer demand for customized, precision-machined telescopic cylinder tubes is increasing, requiring manufacturers to flexibly adjust their production strategies to meet this demand.

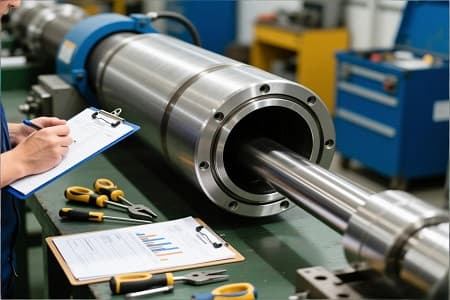

High-quality telescopic cylinder honed tubes undergo rigorous quality control and performance testing. Leakage testing is typically conducted in accordance with ISO 6194, requiring a leakage rate of ≤3 ml/min. Multiple tests, including pressure testing, fatigue testing, and environmental testing, ensure product reliability and durability under various operating conditions.

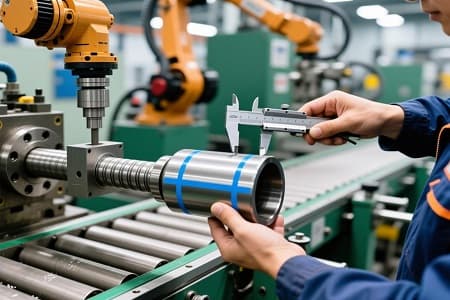

Dimensional accuracy and geometric consistency are key quality indicators for telescopic cylinder honed tubes. The multi-stage casing structure requires each stage to have precise dimensions and perfect roundness to ensure smooth sliding and tight sealing between stages. Advanced production equipment and testing technologies, such as CNC machining centers, laser measurement systems, and automated testing equipment, ensure the manufacture of high-quality products.
Surface quality inspection is particularly important for telescopic cylinder honed tubes. Detecting the roughness, texture, and defects of the honed surface requires specialized instruments and methods. Equipment such as surface roughness measuring instruments, microscope analysis, and profilometers ensure that product surface quality meets design requirements.
Due to its superior performance and broad application prospects, telescopic cylinder honed tubes have become an indispensable material in modern hydraulic systems. With continuous technological advancements and diversifying market demands, this field is poised for further innovation and development, providing superior solutions for a wide range of industries. Whether in construction, agriculture, logistics, or the automotive industry, telescopic cylinder honed tubes will continue to play a vital role in contributing to the sustainable development of industry.
