1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

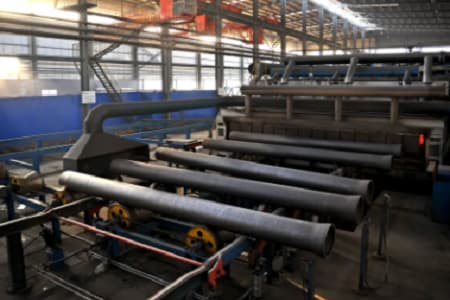

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.

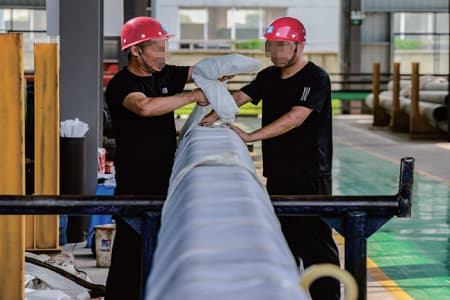

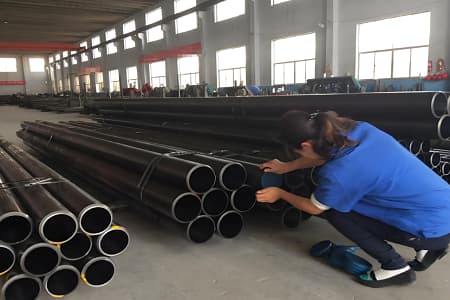

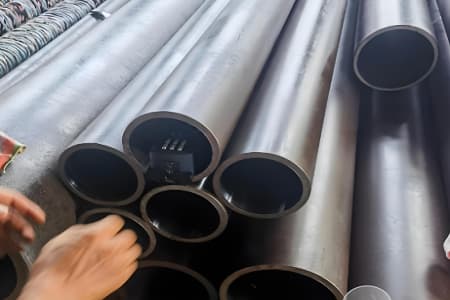

3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

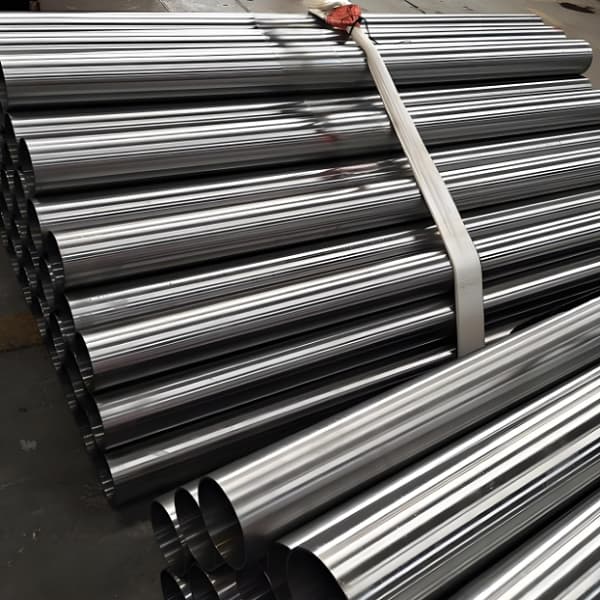

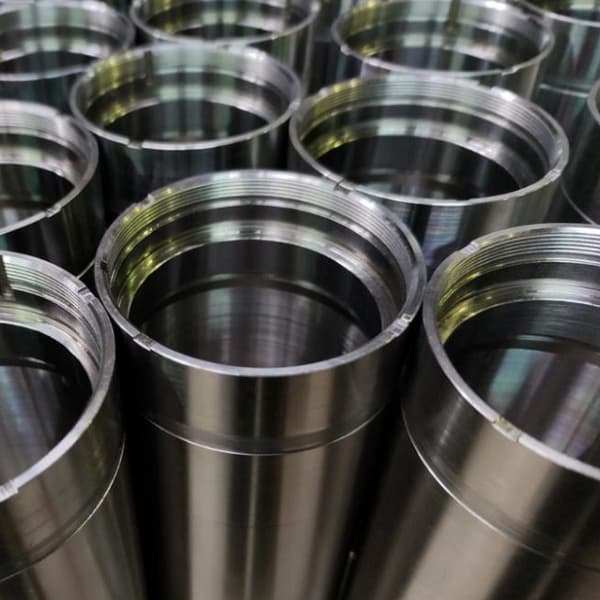

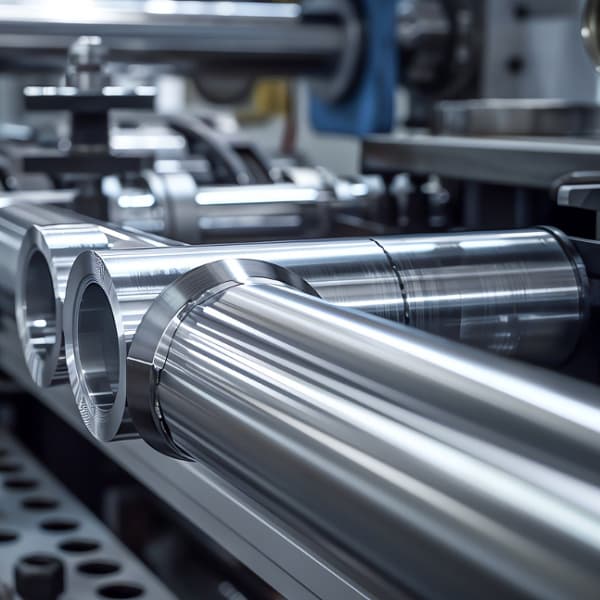

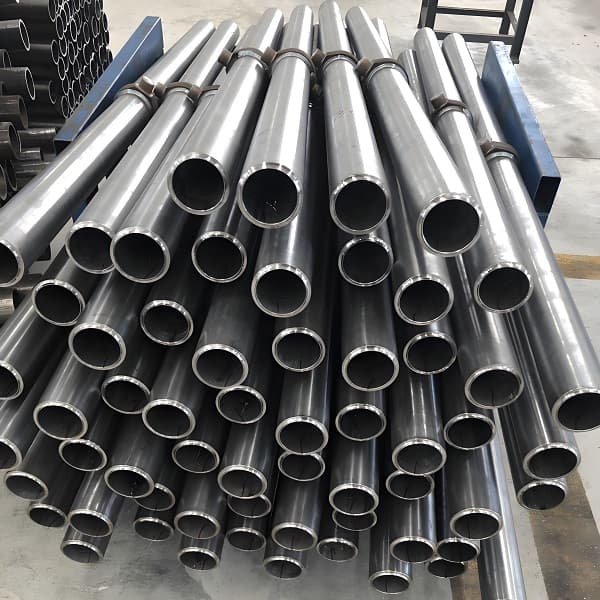

To understand the value of Duplex 2205 stainless steel Honed Tubes, one must first understand their base material—duplex 2205 stainless steel. This alloy is composed of a roughly 50/50 microstructure of austenitic and ferritic stainless steel. This unique "duplex" structure gives it mechanical properties and corrosion resistance far exceeding those of conventional austenitic stainless steels such as 304 or 316.
Extremely High Mechanical Strength: Duplex 2205 stainless steel has a yield strength and tensile strength approximately twice that of conventional austenitic stainless steels. This means that, for the same pressure requirements, cylinders made with Duplex 2205 stainless steel Honed Tubes can be designed to be lighter and thinner, enabling lighter and more compact equipment while maintaining extremely high structural integrity and pressure resistance.
Excellent Corrosion Resistance: This material is highly resistant to pitting, crevice corrosion, and stress corrosion cracking. Its corrosion resistance is particularly suitable for harsh, chloride-rich environments such as offshore platforms, chemical processing, the papermaking industry, and coastal areas. This ensures that components made from Duplex 2205 stainless steel Honed Tubes have a longer lifespan and require less maintenance.
Excellent Weldability and Machinability: Despite its high strength, Duplex 2205 stainless steel offers excellent weldability and machinability, facilitating the manufacture of complex hydraulic cylinders.
Even with excellent materials, sophisticated processing techniques are essential to unlock their full potential. Honing is a crucial finishing step.
Honing is an ultra-precision grinding process used for finishing internal bores. It uses a honing head with an oilstone, rotating and reciprocating at low speeds, to create micro-cuts in a cross-grain pattern on the inner wall of the tube. This process brings a qualitative leap forward for Duplex 2205 steel pipes:

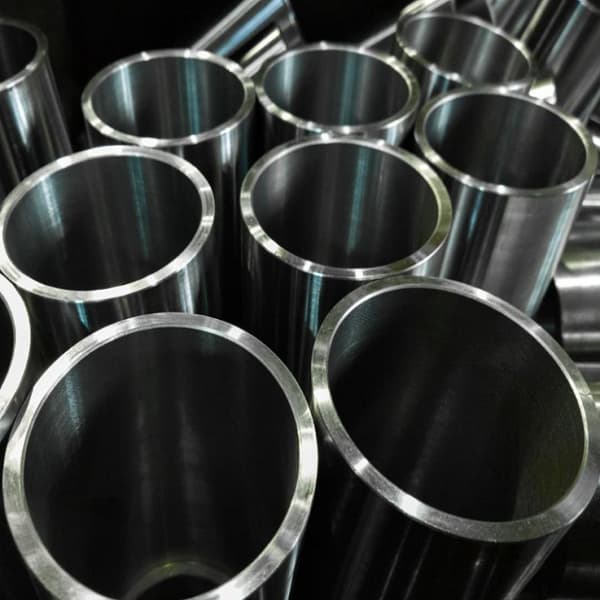

Excellent Surface Finish: Honing creates an inner surface with an extremely low surface roughness (Ra value), typically reaching Ra ≤ 0.4 μm or even lower. This mirror-smooth surface significantly reduces friction and wear on seals such as piston seals, significantly improving the reliability and life of the sealing system and reducing energy loss and heat generation caused by friction.
Precise Geometry: The honing process allows for extremely precise control of the inner diameter tolerance of the steel pipe, ensuring dimensional consistency. More importantly, it effectively corrects any slight taper, ovality, or waviness that may have been introduced during prior machining, achieving near-perfect cylindricity and straightness, which are crucial for smooth, slip-free operation of hydraulic cylinders.
Unique Crosshatch Oil Reservoir Structure: The crosshatch pattern created by honing is not only an aesthetically pleasing feature but also serves a vital function. These tiny grooves store trace amounts of lubricant, forming an oil film between the friction pairs even during initial startup or under boundary lubrication conditions. This prevents dry friction, reduces starting torque, and further enhances wear resistance.
Improved residual stress distribution: The cold work hardening effect creates beneficial compressive stresses on the honed surface, helping to improve component fatigue strength.
The combination of high strength, high corrosion resistance, and a high-precision internal surface makes Duplex 2205 stainless honed tubes extremely versatile, especially in extreme environments where standard materials are insufficient.
Marine and Offshore Industries: Ship steering systems, offshore drilling platform lifting gear, and deck machinery are exposed to high-salinity seawater for extended periods, requiring extremely high corrosion resistance and strength.
Chemical and Process Industries: Hydraulic equipment and reactor push rod cylinders used to handle acidic, alkaline, or corrosive chemical media must withstand chemical attack and high temperatures and pressures.
Paper and Pulp Industry: This industry operates in humid environments with high levels of corrosive chemicals. Hydraulic cylinders in papermaking machinery require Duplex 2205 stainless steel Honed Tubes to ensure reliability and continuous production.
High-end Manufacturing and Heavy Industry: This includes waste disposal equipment, cement production, and mining machinery. Equipment in these areas often faces heavy loads, shock, and harsh environments.
When selecting hydraulic cylinders or similar precision tubing, short-term cost shouldn’t be the only consideration. Investing in high-quality components like Duplex 2205 stainless steel Honed Tubes means investing in longer equipment life, minimal downtime, higher system efficiency, and overall lower maintenance costs. It’s a future-proof solution that meets future challenges, providing unmatched reliability and performance for your critical applications.
