1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

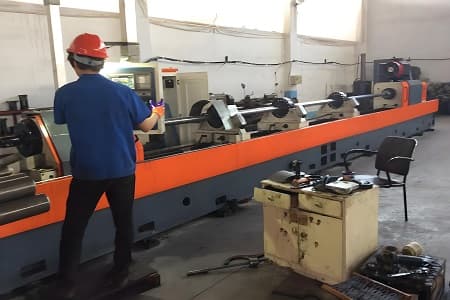

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.

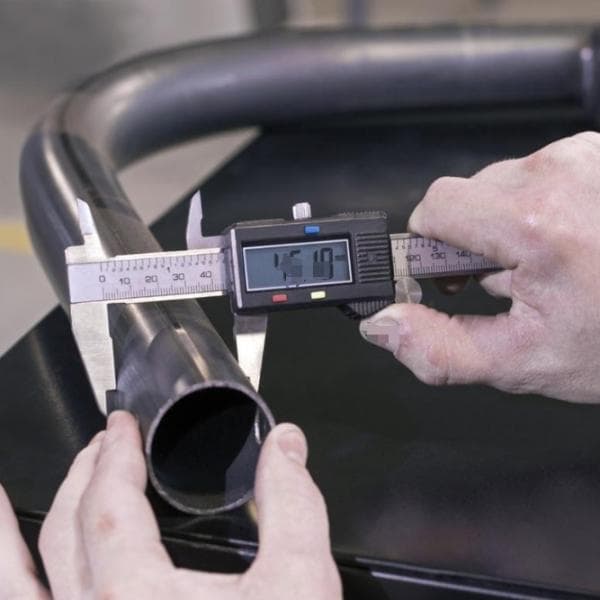

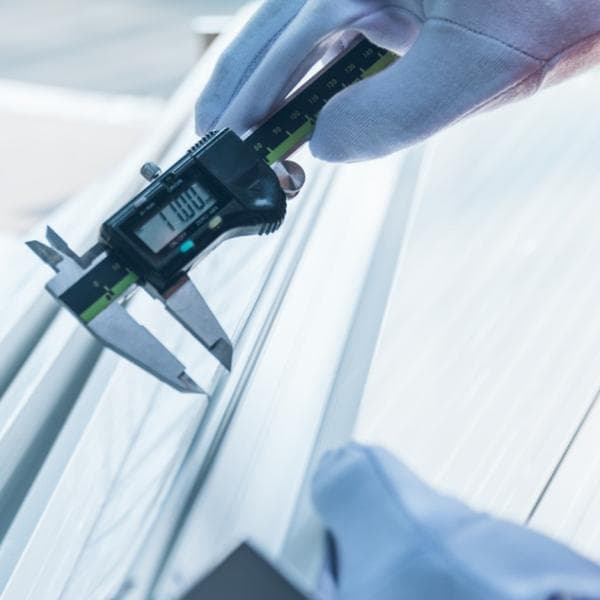

3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

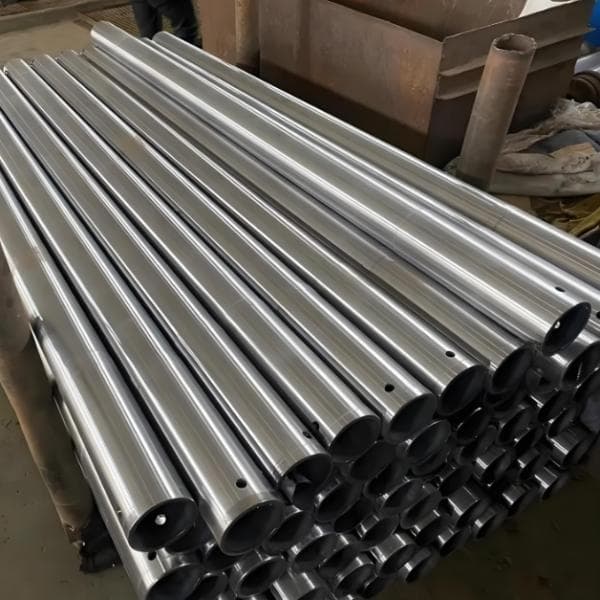

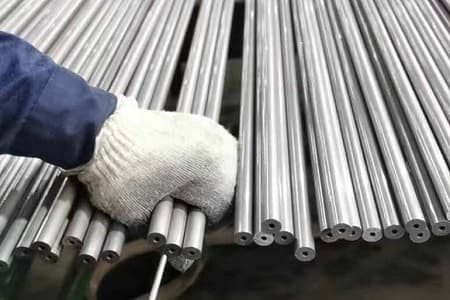

Precision micro-honed tubes for microactuators are seamless or welded stainless steel tubes that undergo a rigorous micro-honing process. This finishing technique involves meticulously honing the tube's inner diameter (ID) to achieve an exceptionally smooth, mirror-like surface finish and extremely tight tolerances. Unlike standard tubes, these tubes are designed not only for structural purposes but also as the critical bores in micro pneumatic and hydraulic actuators. The quality of this bore directly determines the efficiency, force, and lifespan of the actuator itself.
Microactuators convert energy (typically compressed air or hydraulic oil) into precise linear or rotary motion. They serve as the “muscle” of devices ranging from laboratory automation and semiconductor manufacturing to minimally invasive surgical robots. The performance of these actuators depends directly on the seal between the piston and the inner wall of the tube. This is where precision micro-honed tubes specifically designed for microactuators offer the advantage.
The perfectly smooth and consistent inner surface minimizes friction during piston movement. Reduced friction offers several key advantages:
Higher efficiency: Lower friction means less energy lost as heat, enabling actuators to operate more efficiently and reducing power consumption.
Smoother, more precise motion: A flawless surface ensures consistent, stick-slip-free motion, which is critical for applications requiring ultra-fine positioning and control.
Reduced wear and extended service life: The smooth surface significantly reduces wear on the tube itself and dynamic seals, significantly extending the life of the entire actuator assembly.
Eliminating leaks: The uniform inner diameter creates a perfect seal with the piston rings, preventing internal leakage of air or hydraulic fluid. This ensures consistent force output and precise control, as the actuator does not “drift” under load.
Achieving the levels of precision and reliability demanded by modern high-tech industries would be impossible without precision micro-honed tubes for micro actuators.
The creation of these high-performance tubes is the result of advanced manufacturing processes that begin with high-quality stainless steel, prized for its strength, corrosion resistance, and durability. Its key advantage lies in micro-honing—a cold-work finishing process.
During micro-honing, a grinding stone is moved across the interior of the tube with precise pressure and motion. This process meticulously removes minute surface irregularities. This is more than just a polishing step; it’s a controlled material removal process that achieves two crucial results:
Excellent surface finish: Measured in micrometers (µm) or microinches (µ-in), the surface finish achieves an extremely low average roughness (Ra). Typical Ra values for micro-honed tubes can reach less than 0.4 µm (16 µ-in), resulting in a nearly perfectly smooth surface.
Tight dimensional tolerances: The process maintains extremely tight tolerances on the inside diameter of the tube throughout, ensuring a consistent, round tube with no waviness or taper.
This meticulous attention to internal geometry is the essence of high-quality precision micro-honed tubes for micro-actuators and what distinguishes them from standard hydraulic tubing.
Microactuators require compact structure, fast response, and precise control. Micro-honed tubes, as their cylinders, are the physical foundation for achieving these properties.
Medical and Laboratory Equipment: Micro-honed tubes are used to control microfluidic valves, precision injection heads, and high-precision positioning stages in surgical robots, precision drug delivery pumps, in vitro diagnostic (IVD) devices, and DNA sequencers. Their biocompatibility (e.g., using 316L stainless steel), contamination-free, and absolutely reliable motion are crucial, directly impacting patient safety and the accuracy of test results.
Precision Optics and Semiconductors: Lithography machines, wafer handling robots, microscope autofocus systems, laser tuning devices, and other applications require microactuators to achieve nanometer-scale movement. Micro-honed tubes provide the foundation for stable, vibration-free, and drift-free motion.
Aerospace and Defense: Micro-hydraulic or pneumatic servo actuators are used in missile servos, drone flight control systems, and satellite lens adjustment mechanisms. They must maintain extremely high reliability in extreme temperatures, vibration, and shock environments. The high strength and precision of micro-honed tubes meet this demanding requirement.
High-end industrial automation: Precision assembly robots, microgrippers, 3D printer micro-dispensing heads, and more all rely on micro-pneumatic or hydraulic cylinders made from micro-honed tubes to achieve precise force and position control.
Though as tiny as a hair, the precision micro-honed tubes used in micro-actuators are a shining jewel in the crown of the high-end equipment manufacturing industry. They represent the pinnacle of metal precision machining technology and serve as a bridge between macro-design and micro-performance. As science and technology continue to explore the frontiers of the microscopic world, these precision micro-tubes will continue to serve as indispensable key components, silently supporting humanity’s creation of miracles in healthcare, scientific exploration, and industrial manufacturing.
