1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.

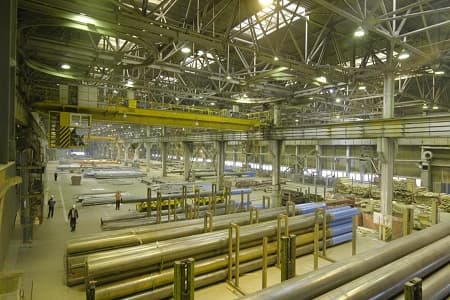

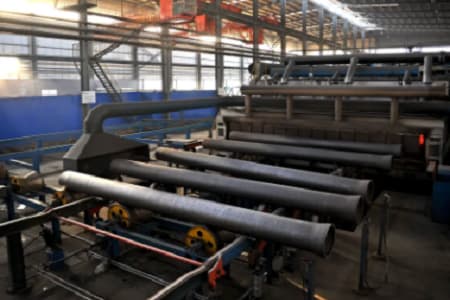

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

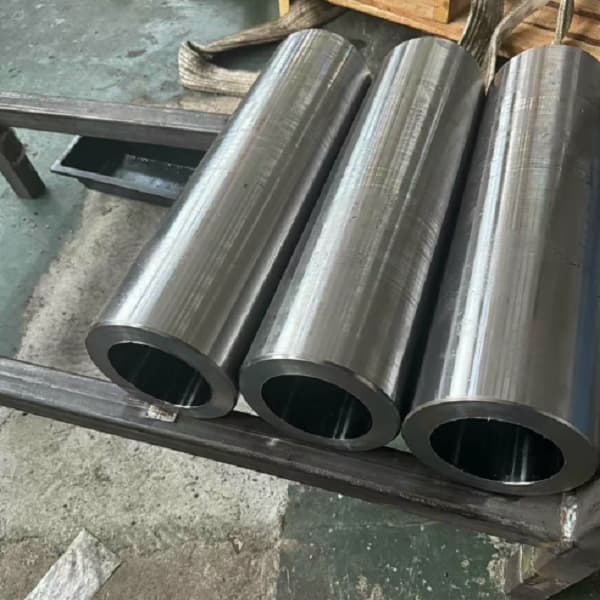

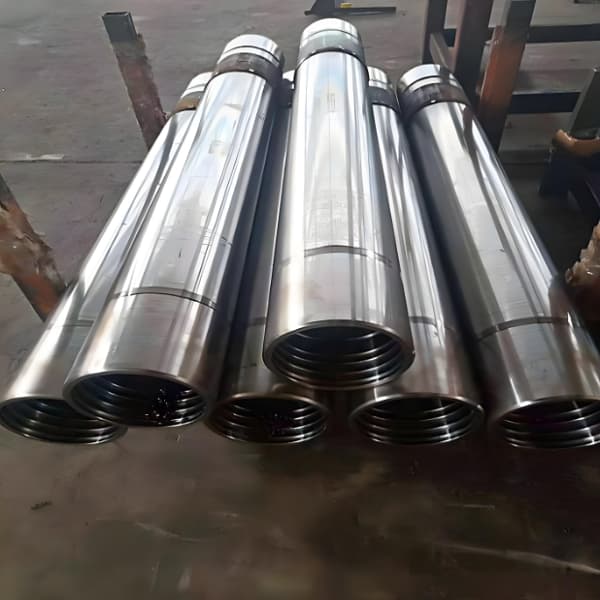

Simply put, Super Duplex 2507 Honed Tubes are the "all-around champions" of the hydraulic world. They offer an unparalleled balance of strength, toughness, and corrosion resistance, surpassing the overall performance of standard austenitic stainless steel and duplex 2205 steel honed tubes.
However, excellent materials alone are far from enough. For applications such as hydraulic cylinders, servo cylinders, and material conveying cylinders, the internal surface quality of the tube is crucial. This is where the “honing” process comes into play. Honing is a finishing process that uses a honing head with an oilstone to perform a low-speed rotation and reciprocating motion on the inner surface of the tube, achieving micron-level reduction in the inner wall.
Honing Super Duplex 2507 Honed Tubes offers the following key benefits:
Unparalleled Surface Finish: The honing process creates a surface structure with a specific crosshatch pattern. This structure not only produces an extremely low surface roughness (Ra value) but also effectively retains lubricant, reducing friction and wear, significantly improving seal life and overall system reliability.
Precise Geometry: Honing precisely corrects the straightness, roundness, and cylindricity of the tube, ensuring highly accurate and consistent internal bore dimensions. This is essential for precision-fit pistons and sealing systems.
Improved Surface Integrity: Compared to processes like grinding, honing is a cold process that generates minimal heat, avoiding surface burns and micro-cracking, while preserving the inherent corrosion resistance of Super Duplex 2507.
When the robust material of Super Duplex 2507 is combined with the precision surface of the honing process, the result is Super Duplex 2507 Honed Tubes of impeccable performance. This combination makes them irreplaceable components in the following key areas:
Marine and Offshore Engineering: Used in shipbuilding, subsea equipment, mooring systems, and seawater hydraulic systems, they offer excellent resistance to seawater corrosion and withstand high pressure.
Oil and Gas Extraction: Corrosion resistance and high-pressure resistance are crucial in downhole tools, valve stem sleeves, high-pressure pump cylinders, and equipment handling sour oil and gas (containing H2S and CO2).
Chemical and Process Industries: Used in reactors, heat exchangers, and high-precision pipelines exposed to highly corrosive chemicals, high-temperature, and high-pressure fluids.
High-End Hydraulic and Pneumatic Systems: Used as hydraulic cylinders in heavy machinery, aerospace, and test equipment, ensuring trouble-free system operation.
2507 is called “Super” due to its astonishing physical and chemical properties:
Extraordinary Mechanical Strength: Its yield strength (≥550 MPa) is more than three times that of ordinary 316L stainless steel (≥170 MPa) and even far exceeds that of 2205 duplex steel (≥450 MPa). This means that at the same operating pressure, Super Duplex 2507 Honed Tubes can be used to design hydraulic cylinders with thinner walls and lower weight, making it an ideal choice for lightweighting equipment.
Extreme Corrosion Resistance: Its pitting resistance equivalent value (PREN = %Cr + 3.3 × %Mo + 16 × %N) typically exceeds 40, an exceptionally high value. This means Super Duplex 2507 Honed Tubes offer exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC). Their performance far exceeds that of 316L and 2205 duplex steel, and even rivals that of some nickel-based alloys in chloride environments.
Excellent Wear Resistance: The high hardness (typically 32 HRC) imparts inherent resistance to scratching and wear, which is crucial for extending the service life of hydraulic cylinders and seals.
Super Duplex 2507 Honed Tubes are not just any hydraulic component; they are an engineered solution designed to meet the toughest challenges. When your equipment faces the multiple extremes of ultra-high pressure, severe corrosion, high wear, and heavy loads, choosing them means you’re choosing the highest reliability, longest service life, and lowest lifecycle cost. Despite the higher initial investment, it eliminates catastrophic downtime, safety incidents, and costly replacements caused by material failure, making it the ultimate strategic cornerstone for superior performance and worry-free operation in extreme environments.
