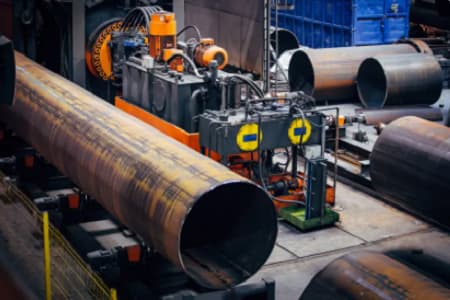

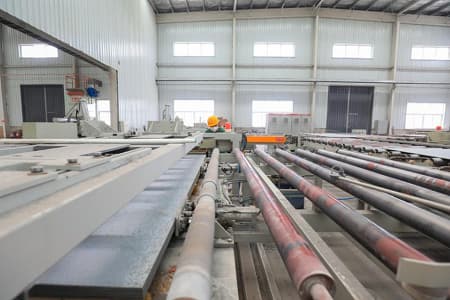

2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.
In the pulse of modern industry, hydraulic systems play a central role in power transmission. From the resounding power of giant excavators to the meticulous precision of precision injection molding machines, they all rely on a stable and powerful heart: the hydraulic cylinder. Within this powerhouse lies a component, though unobtrusive, that directly determines the performance, efficiency, and lifespan of the entire system: the hydraulic cylinder honed tube, often referred to as the "backbone" and "inner soul" of the hydraulic cylinder.

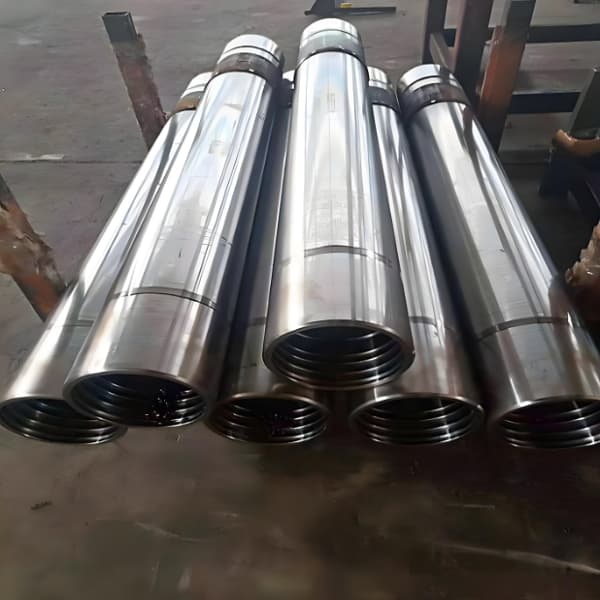

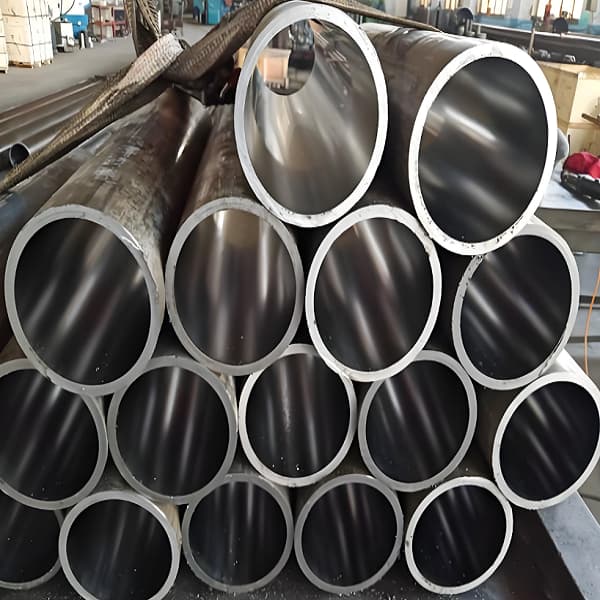

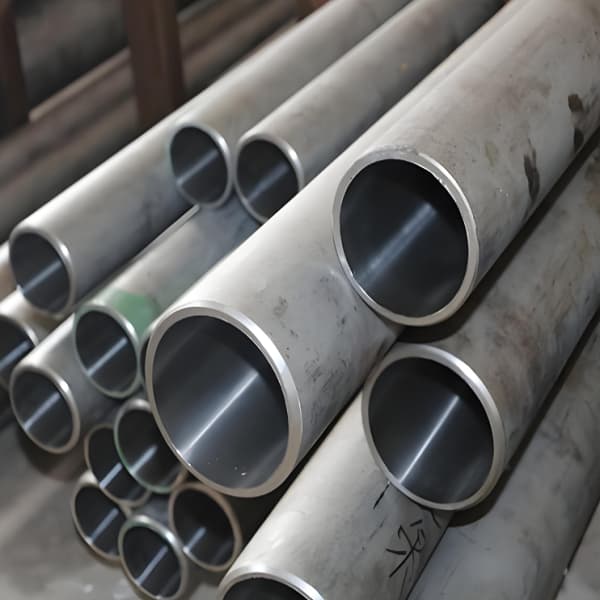

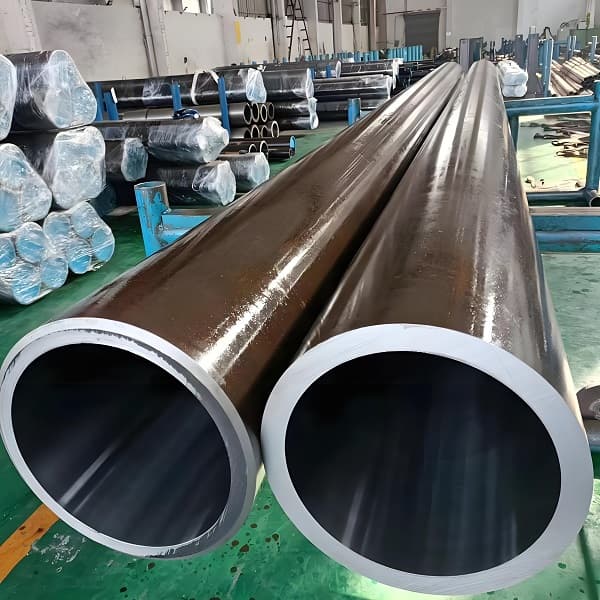

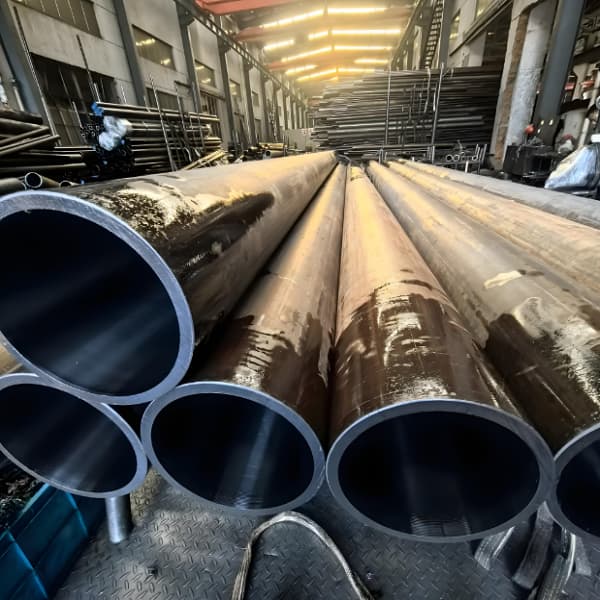

Simply put, a honed tube is a cold-drawn or hot-rolled seamless steel pipe that has undergone a precision honing process. It is used to manufacture the barrel of a hydraulic cylinder. Far from being an ordinary steel pipe, its internal quality and surface properties are meticulously processed and controlled.
Manufacturing a high-quality honed tube is a complex process that integrates materials science and precision machining technology. It typically begins with a high-quality hollow steel billet, which is then pierced and cold-drawn or hot-rolled to form a preliminary tube. Cold-drawing is more common due to its superior mechanical properties and dimensional accuracy. However, the true transformation comes in the final honing process. In this step, a honing head equipped with oilstone grinding wheels rotates and reciprocates within the fixed tube. This complex cutting motion meticulously removes minute amounts of metal material.
Honing Hydraulic Cylinder Tubes: Why is Honing Necessary? The Pursuit of Ultimate Surface Smoothness
Extremely Low Surface Roughness: The honing process can achieve an extremely low surface roughness (Ra value) on the cylinder tube’s inner wall, typically between 0.2μm and 0.4μm, or even lower. This mirror-smooth inner wall minimizes friction and wear on the piston seal. Low friction means higher mechanical efficiency, lower energy loss, and less heat generation, significantly improving the energy efficiency of the entire hydraulic system.
Cross-Hatch Pattern: This is a unique masterpiece of the honing process. The motion of the honing head leaves not parallel straight lines but a series of intersecting microscopic grooves at specific angles. This precise “hatch” system is crucial: it effectively stores lubricant, forming a durable oil film between the piston and cylinder wall, preventing “dry wear” and sticking even under heavy loads and low speeds. It also helps to dissipate wear debris and contaminants, trapping them in the grooves and carrying them to the ends of the cylinder barrel, preventing them from damaging seals and delicate mating surfaces.
Beyond unparalleled surface quality, the base material of the honing tube is equally demanding. To ensure that hydraulic cylinders can withstand extremely high internal pressures (reaching hundreds or even thousands of bar) and enormous external loads, they are typically constructed from high-strength carbon or low-alloy steels, such as the common ST52.3 or similar grades. These materials possess high yield and tensile strengths, ensuring the structural integrity of the cylinder under high pressure and preventing the risk of expansion or bursting.
Corrosion resistance is also a major consideration depending on the application environment. For hydraulic cylinders used in marine machinery, construction equipment, or those operating in humid environments, the inner wall of the honed tube is often hard chrome plated. This thick chrome coating not only significantly increases surface hardness (making it more wear-resistant) but also provides excellent protection against rust and corrosion, extending the service life of the cylinder barrel many times over.
An often overlooked but crucial characteristic is the geometric accuracy of the honed tube. High-quality honed tubes must exhibit extremely tight inner diameter tolerances and straightness. This precise inner diameter ensures a perfect fit with the piston and seal, forming an effective and long-lasting seal. Excellent straightness ensures a straight, unbiased piston rod trajectory, preventing problems such as eccentric wear, unilateral seal wear, and internal leakage, thereby guaranteeing smooth and precise hydraulic cylinder movement.
In short, a hydraulic cylinder honing tube is far from a passive container. It is a high-tech, precision component. Its superior surface quality, robust material properties, and precise geometric tolerances form the solid foundation for the hydraulic cylinder’s efficiency, reliability, and longevity. When selecting a hydraulic cylinder, the quality of the internal honing tube is often crucial to its ultimate performance and value.
