1. High-Quality Raw Materials Our raw materials are primarily sourced from renowned steel mills such as Jiangsu BOS Hydraulic Technology Co., Ltd., Baosteel, Ansteel, and Changjiang Steel Pipe.
2. Advanced Production Equipment Our manufacturing facilities include cold drawing machines, honing machines, skiving and roller burnishing machines, straightening equipment,polishing machines, heat treatment furnaces, grinding machines, and more.
3. Rich production experience, strict quality control We implement a professional internal quality control system to conduct comprehensive inspections on all products.

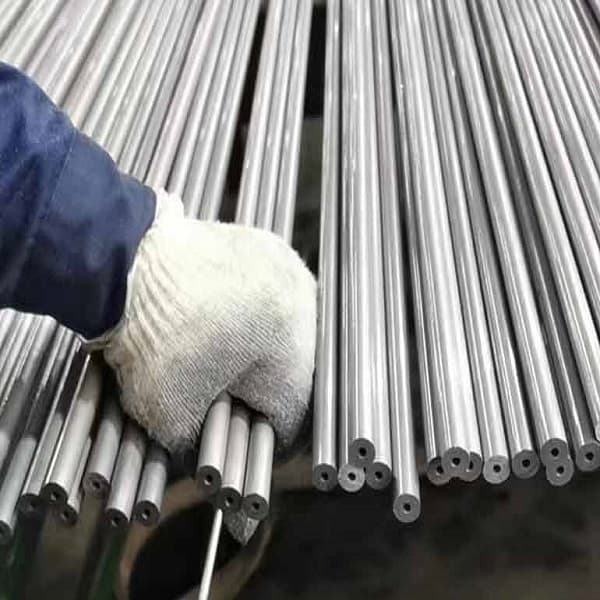

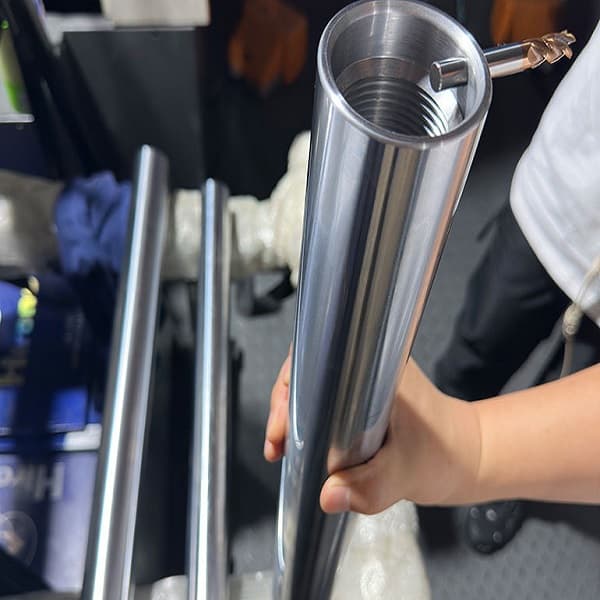

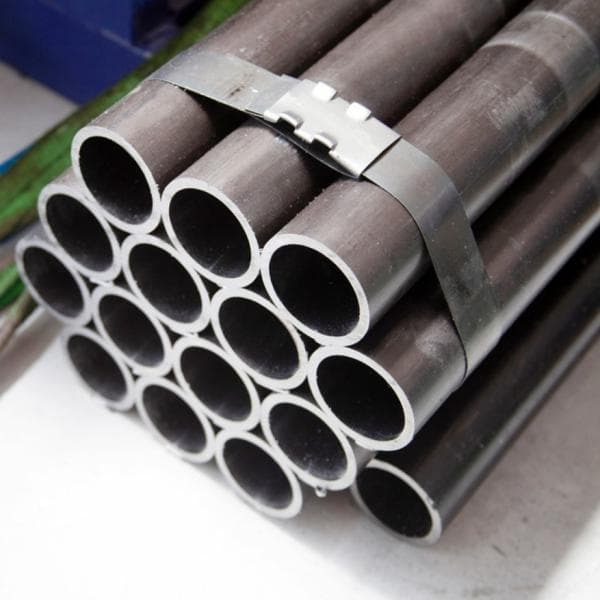

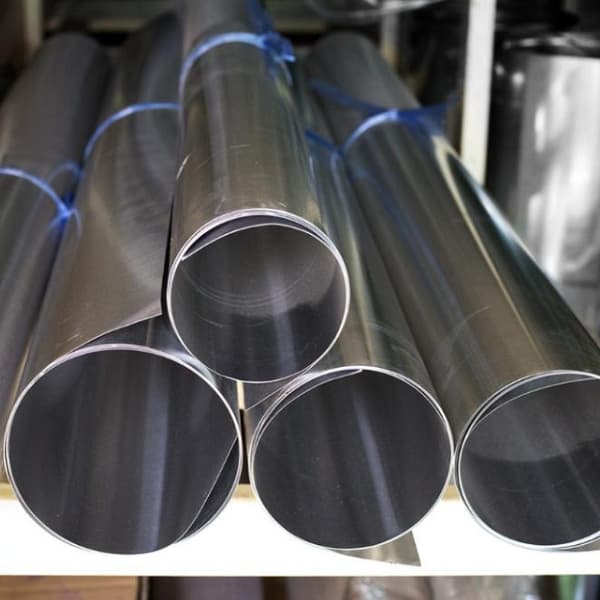

Low-Friction Precision Ground Tubes are high-precision seamless steel tubes processed through a specialized process. The manufacturing process typically includes multiple steps, including cold drawing, heat treatment, and precision grinding, resulting in an exceptionally smooth inner surface, tight dimensional tolerances, and excellent straightness. The core characteristics of this tubing are its low coefficient of friction, high wear resistance, and excellent dimensional stability. These significantly reduce friction and wear between moving parts, thereby improving the efficiency, precision, and lifespan of mechanical systems.
Friction is the primary source of energy loss and performance killer in mechanical motion. Excessive friction can lead to:
Inefficiency: Greater driving force is required, increasing energy consumption.
Heat buildup: Frictional heat causes component expansion, affecting precision and even damaging seals.
Slippage: During slow motion, the difference between static and kinetic friction can cause jerky motion, resulting in skipping or “slipping.”
Premature wear: Friction inevitably leads to wear, reducing equipment life and precision retention.
Low-Friction Precision Ground Tubes fundamentally solve these problems through their superior craftsmanship:
Extremely low surface roughness: The precision grinding process produces a mirror-like surface finish, significantly reducing the contact area and mechanical engagement between surface microscopic peaks and mating parts, thereby fundamentally lowering the coefficient of friction.
Excellent surface support: While achieving extremely low roughness, the surface has a higher support ratio, enabling more even load distribution, reducing pressure per unit area, and further reducing wear.
Optimized surface texture: The precisely controlled grinding texture facilitates the formation of a continuous and stable lubricating film, achieving near-perfect fluid lubrication and minimizing sliding friction.
Manufacturing high-quality Low-Friction Precision Ground Tubes is an extremely delicate and technical process, centered on grinding, not just honing or cold drawing. The main process steps include:

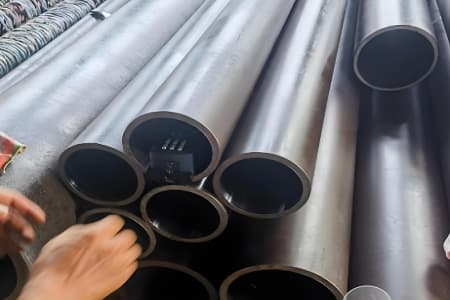

High-quality base tube selection: High-quality cold-drawn or seamless steel tubes are used as blanks to ensure uniform chemical composition, excellent mechanical properties, and no internal defects.

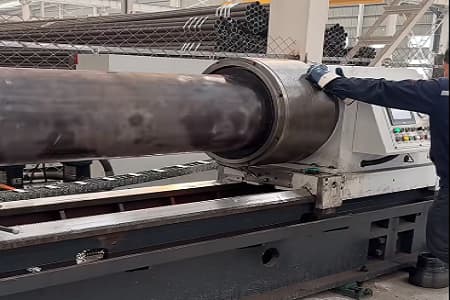

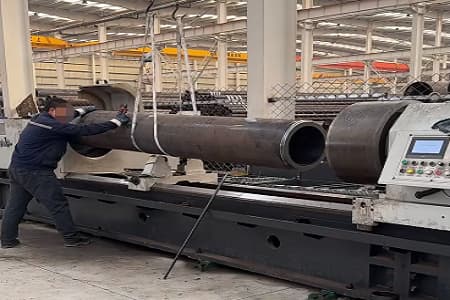

Precision grinding: This is the key process that achieves superior performance. The tube is clamped on a high-precision CNC grinder, where high-speed precision grinding wheels are used to grind it to micron-level precision.
External cylindrical grinding: Used to manufacture linear optical shafts, guide shafts, etc., it can ensure extremely high diameter tolerances, roundness, and straightness.
Internal cylindrical grinding: Used to manufacture ultra-high-precision hydraulic and pneumatic cylinders, it can achieve unparalleled inner diameter consistency and surface finish.

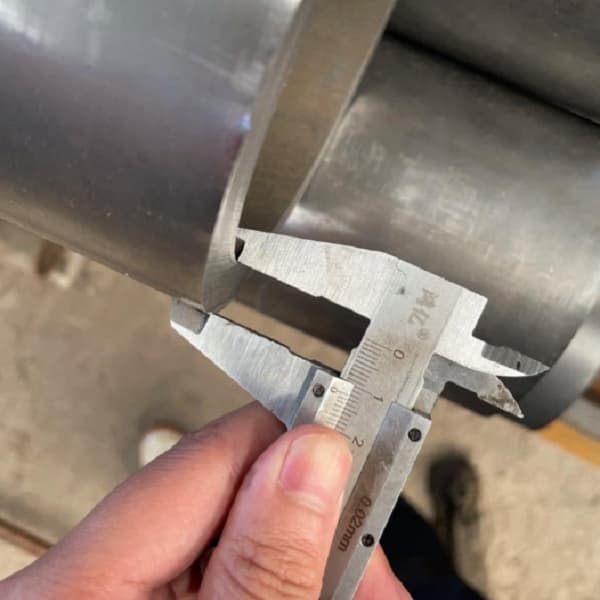

Precise dimensional and geometric control: The entire process is carried out in a constant temperature environment and monitored in real time by an online measurement system to ensure that the tube’s diameter tolerance, roundness, cylindricity, and straightness meet micron-level (μm) standards.

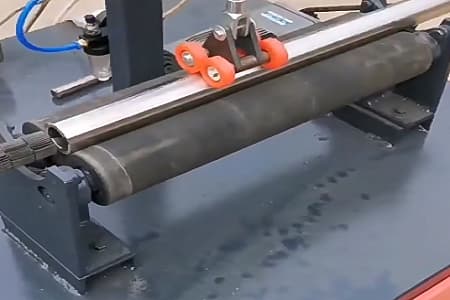

Strict surface treatment and cleaning: After processing, the tube is thoroughly cleaned, rust-proofed, and specially packaged to ensure that the product is delivered to customers in perfect condition.
Choosing Low-Friction Precision Ground Tubes means infusing your equipment with the following core advantages:
Extremely low coefficient of friction: Significantly reduces operating resistance, improves system efficiency, and saves energy.
Excellent motion smoothness: Completely eliminates low-speed “creeping” for ultra-smooth, jitter-free, precise motion.
Extremely high dimensional and geometric accuracy: Ensures linear motion and positioning accuracy, reducing eccentric wear and vibration.
Extremely long service life: Extremely low wear protects the tube itself and its associated valuable components, such as seals and bearings, significantly extending overall equipment life.
Excellent corrosion resistance (optional): Available in hard chrome plating and stainless steel, suitable for a variety of environments.
High-end hydraulic and pneumatic systems: Used as the barrel of precision oil and air cylinders in injection molding machines, machine tools, presses, and more.
Linear guides and actuators: Used as the support shaft for linear bearings in industrial robots, automation equipment, and measuring instruments.
Packaging and printing machinery: As guide shafts and rollers, they require smooth, vibration-free motion to ensure printing and packaging quality.
Semiconductor and electronics manufacturing: They serve as critical moving components in ultra-precision equipment such as wafer handling and photolithography machines.
With the advancement of Industry 4.0 and smart manufacturing, market performance requirements for motion control components are increasing. In the future, the development of low-friction precision ground tubes will place greater emphasis on material innovation and process optimization. For example, they will employ composite materials or specialized alloys to further improve the strength-to-weight ratio; incorporate digital quality control technology to enable real-time monitoring and feedback throughout the entire production process; and even develop intelligent surface coatings with self-lubricating properties to completely eliminate dependence on external lubricants.
In short, while not a star technology in the spotlight, low-friction precision ground tubes are the cornerstone of the precise, efficient, and long-lasting operation of numerous high-end equipment. They perfectly embody the core value of basic components within the technology ecosystem: their precision and reliability quietly drive progress throughout the industrial world.
